Phoenix Tiger 3 .61~.91 15cc

  • Shipping Weight: 40lbs
  • Manufactured by: Phoenix Model

Rs.13,664.41  Rs.10,931.36
Save: 20% off

Sold Out
Versatility meets maneuverability
The Tiger 60 is designed for beginners and intermediate-level pilots. Its semi-symmetrical wings make it easy to fly at slow speeds. This exceptionally detailed aircraft features all wood construction and is factory pre-covered in high-quality film with beautiful colour graphics. Pre-glued and pinned hinges on all control surfaces. All the hardware is included (servo wire, fuel tank, wheel/landing gear, etc). Select and install your favourite gas/nitro or electric power system and radio gear.



This is the Radio Controlled, Electric, Gasoline, or Glow Powered, 1/5 scale
Almost Ready to Fly Phoenix Model Tiger 3 Low Wing Sport Airplane.
For Intermediate Level Flyers.

FEATURES
Construction: Laser cut balsa and light plywood

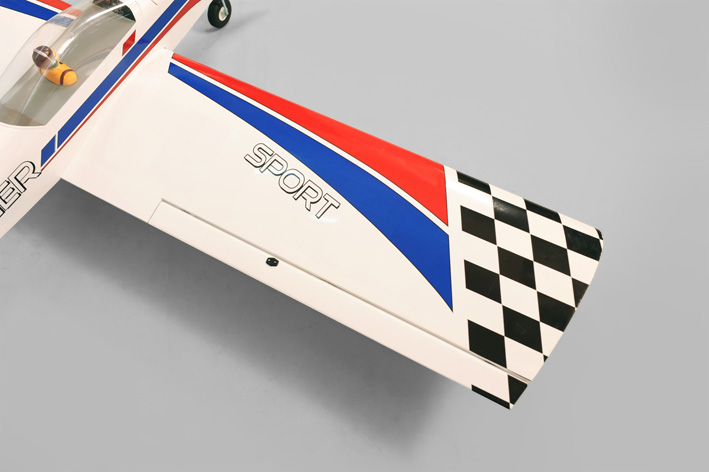

Wing: 2 piece w/all wood construction, ailerons pre-installed,
aluminum wing joiner
Aileron Control: Dual servo
Covering: High quality heat shrink
Radio Compartment: Plywood reinforced
Canopy: Clear
Landing Gear: Scale main gear, spring wire for tail gear
Wheels: Three 2.5" (63.5mm) diameter foam
Fuel Tank w/pre-assembled stopper, approximately 14oz (420cc)
Engine Mount: Two-piece composite plastic
Motor Mount: Plywood with aluminum standoffs
Spinner: Plastic red in color 2.7" (70mm) diameter

INCLUDES

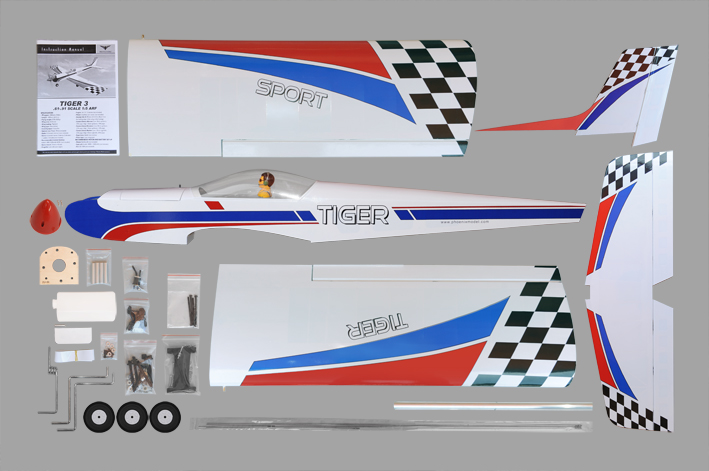

ARF Phoenix Model Tiger 3 with Landing Gear, Wheels, Fuel Tank,
Instrument Panel, Pilot, Instruction Manual

REQUIREMENTS
For Glow Operation;
Engine: .61 - .91 2/stroke
For Gasoline Operation;
Engine: 15cc
For Electric Operation;
Brushless Motor: Rimfire 60
ESC: 60-100A
LiPo Battery: 6S up to 4000 - 5500mAh
Radio: 4-channel minimum
Servos: Six standard (2-aileron; 2-elevator; 1-rudder; 1 throttle)
Servo Extension: Two 12" (305mm) for aileron serrvos
Y-Harness: One for aileron servos
Receiver Battery: 4.8-6V 800-1200mAh NiMH
Misc. Items: 1/4" foam rubber padding, medium fuel tubing,
propeller, building and field equipment.

SPECIFICATIONS
Wingspan: 70.8" (1800mm)
Weight: 8.1 - 9.2lb (3700 - 4200g)
Length: 63.2" (1605mm)
Wing Area: 864 sq in (55.8 sq dm)
Wing Loading: 24.58 oz-sq/in (75 g-sq/dm)
Wing Type: NACA Airfoils
Servo Mount: 0.83 x 1.6" (21 x 42mm)
Center of Gravity: 3.3 - 3.5" (85 - 90mm) Back from the wing's
leading edge measured at the fuselage
Control Throws- High Rate Low Rate
Elevator: 0.31" (8mm) 12% expo 0.39" (10mm) 12% expo
Rudder: 0.98" (25mm) 15% expo 1.6" (40mm) 15% expo
Ailerons: 0.31" (8mm) 10% expo 0.35" (9mm) 10% expo

This product was added to our catalog on Monday 10 December, 2012.
