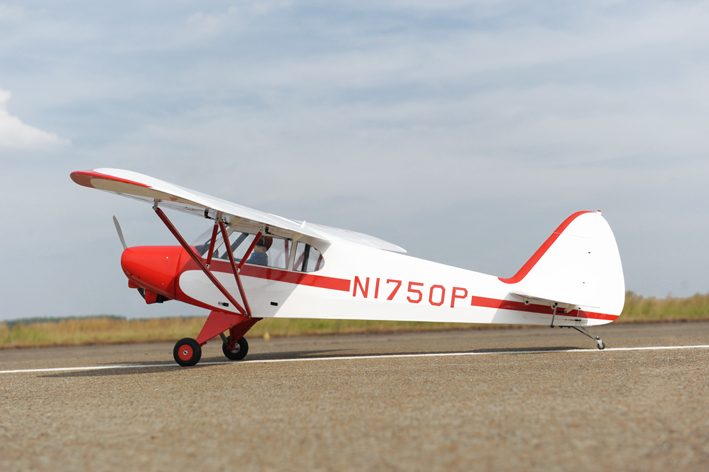

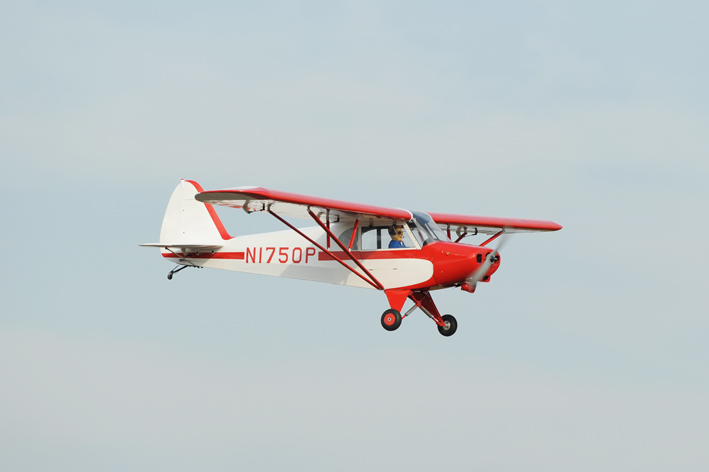

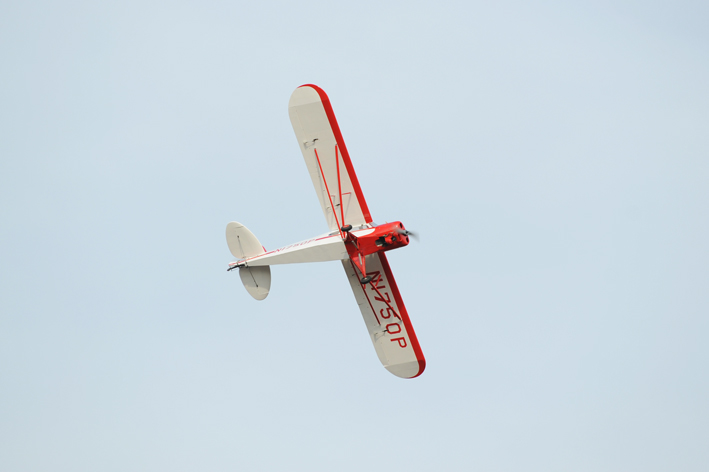

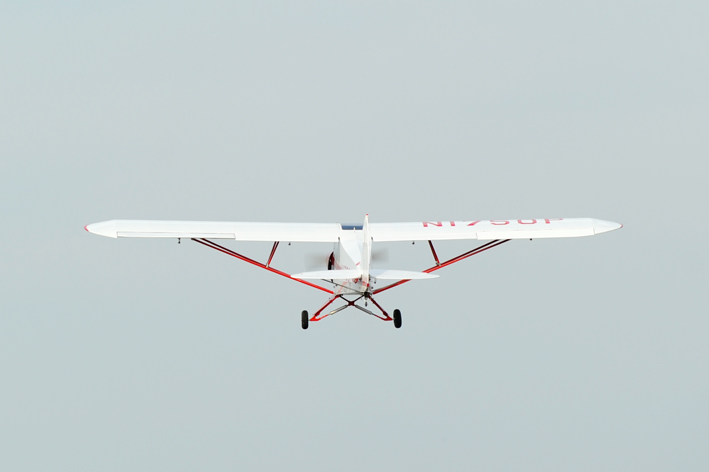

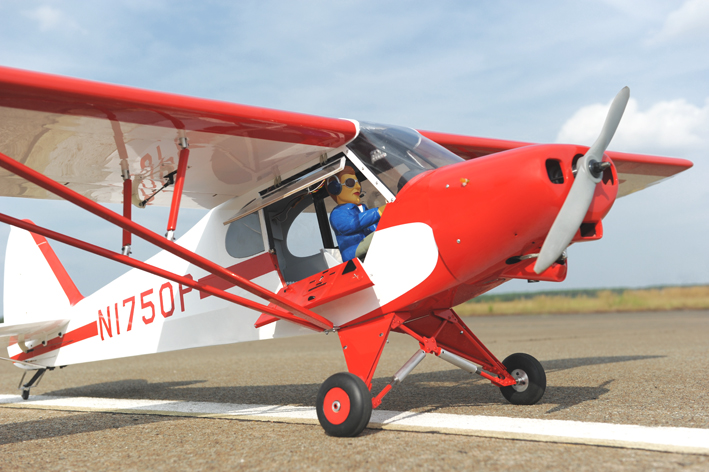

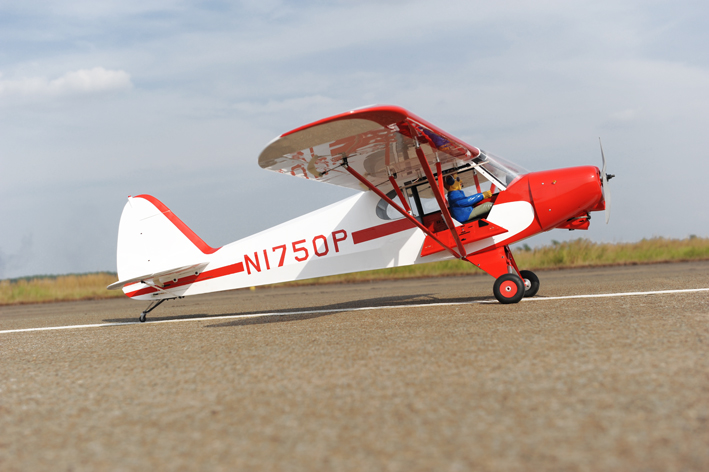

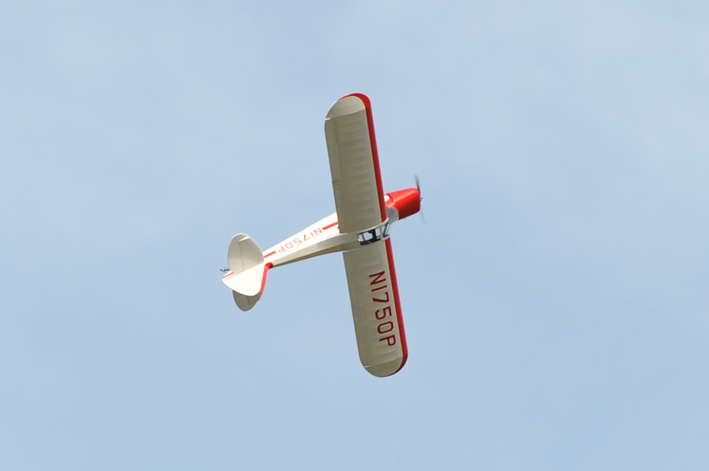

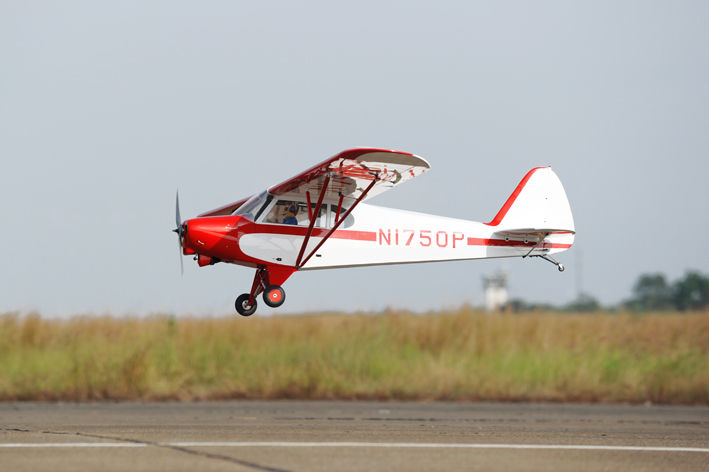

Phoenix Model Super Cub PA-18 30cc Gas/EP ARF 107" - 1:4

  • Shipping Weight: 90lbs
  • Manufactured by: Phoenix Model

Rs.60,811.00  Rs.48,649.00
Save: 20% off

Sold Out
Tandem seat triumph

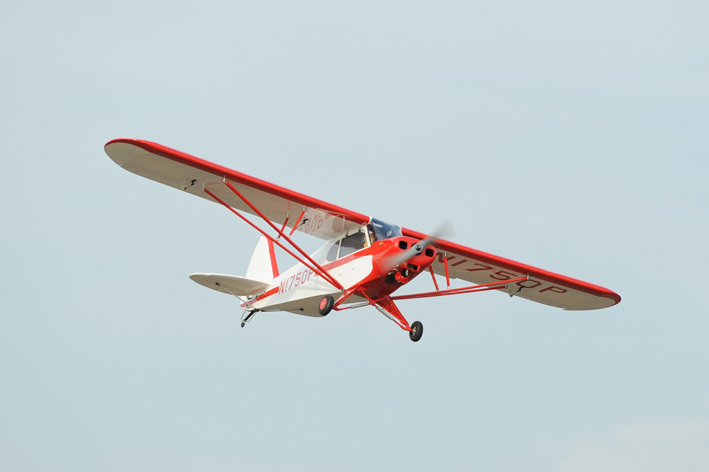

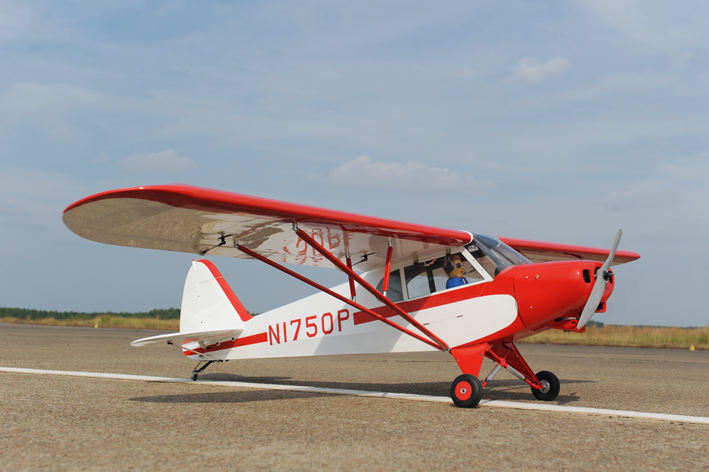

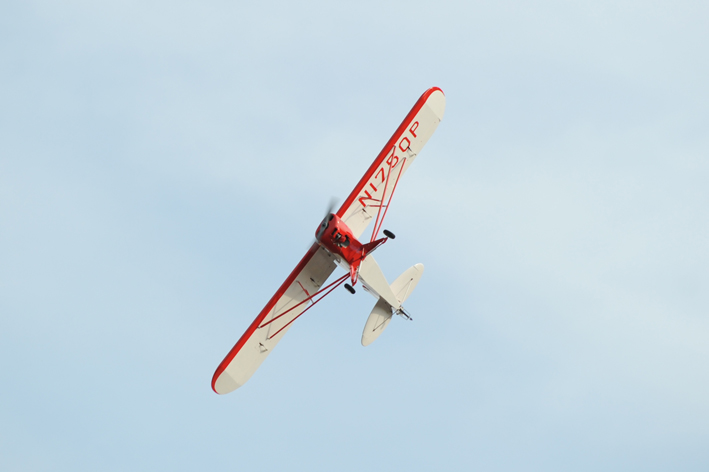

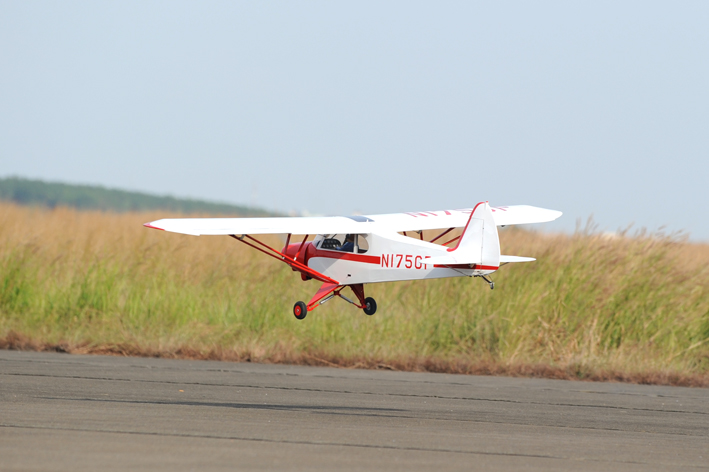

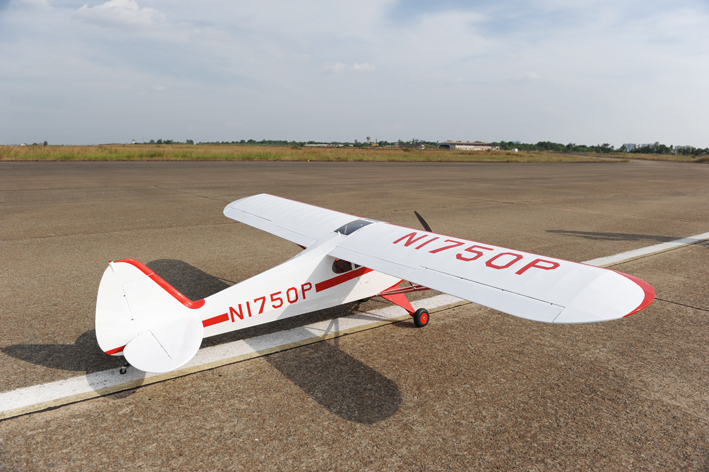

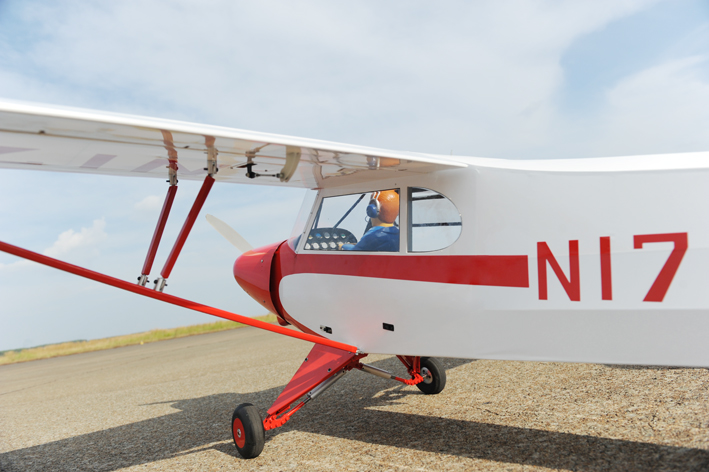

The Piper Cub was produced in the early thirties and forties and quickly became one of the most beloved light aircraft of all time. Its successor, the Super Cub, was produced from 1949 to 1994 and continued the tradition of maneuverability and ease of flight started by the original. This model is 3D engineered to produce precision parts that match perfectly with the full scale version. It features removable wings for easy transportation, and is pre-cut and pre-sheeted for quicker construction.



This is the Radio Controlled, Electric, or Gasoline Powered, 1/4 scale
Almost Ready to Fly Phoenix Model Super Cub 30cc Airplane.
For Intermediate Modeler/Fliers.

FEATURES
Construction: Laser cut balsa and light plywood
Wing: 2 piece w/all wood construction, ailerons pre-installed,
aluminum wing joiner
Aileron and Flap Control: Dual servo
Covering: High quality heat shrink covering
Radio Compartment: Plywood reinforced
Cowl Pre-painted Fiberglass
Canopy: Clear with painted-on frame lines

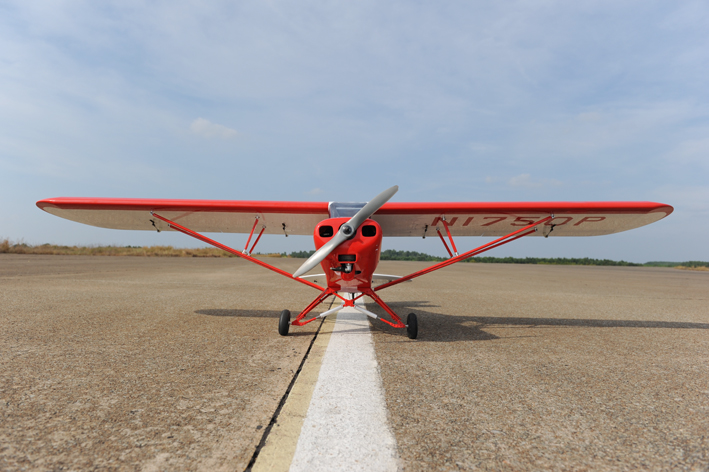

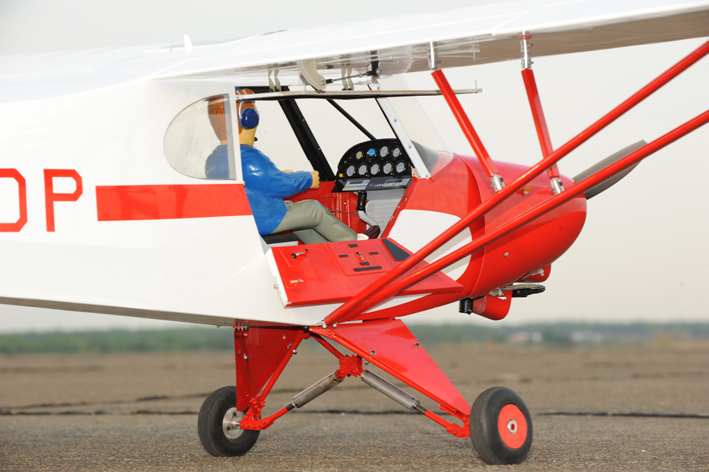

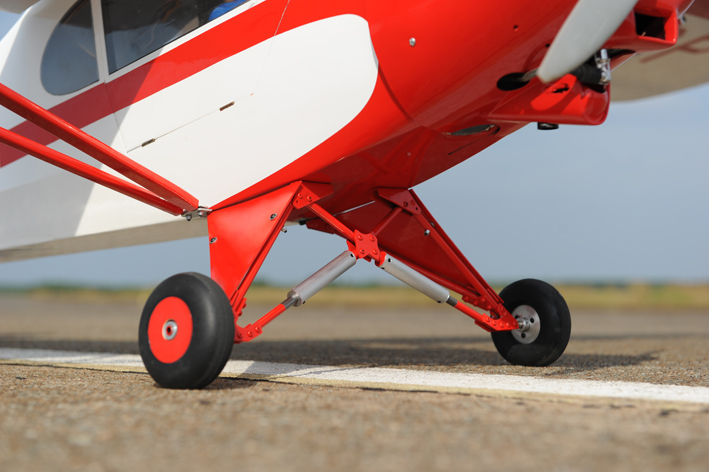

Landing Gear: Scale shock absorbing steel main gear,aluminum tail
gear
Wheels: Two 4.25" (108mm) foam main, one 1" (25mm) tail wheel
Fuel Tank: Approximately 16oz (473cc)
Motor Mount: Three plywood plates with aluminum standoffs
Engine Mount: Plywood with aluminum standoffs

INCLUDES
ARF Super Cub 30cc Airplane with Landing Gear, Wheels, Fuel Tank,

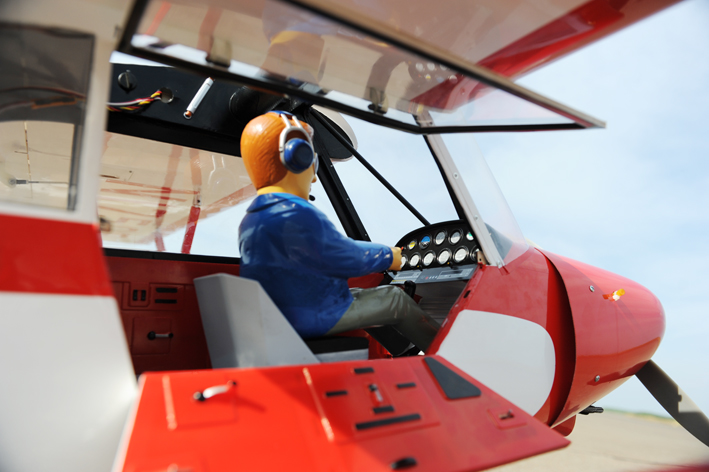

Instrument Panel, Decals, Pilot, Instruction Manual

REQUIREMENTS

For Gasoline Operation;
Engine: 30cc 2/stroke

For Electric Operation;
Brushless Motor: Rimfire 1.60
ESC: 120-160A
LiPo Battery: 12S up to 5000 - 6000mAh (not carried)
LiPo Charger: To match selected battery
Propeller: 18x8 E APC

Radio: 6-channel
Servos: Eight standard high-torque (2-aileron; 2-flap; 2-elevator;
1-rudder; 1 throttle)
Y-Harness: For ailerons
Receiver Battery: 6V NiMH, at least 2400mAh
Misc. Items: 1/4" foam rubber padding, medium fuel tubing,
propeller, building and field equipment.

SPECIFICATIONS
Wingspan: 107" (2720mm)
Weight: 19 - 20lb (9 - 9.5kg)
Length: 68.6" (174.2m)
Wing Area: 1705 sq in (110 sq dm)
Wing Loading: 26.54 oz sq/in (81 sq/dm)
Wing Type: NACA Airfoil
Servo Mount: 0.83 x 1.6" (21 x 42mm)
Center of Gravity: 4.3" (109mm) Back from the wing's leading edge
measured at the fuselage
Control Throws- High Rate Low Rate
Elevator: 0.39" (10mm) 12% expo 0.47" (12mm) 12% expo
Rudder: 1.2" (30mm) 15% expo 1.6" (40mm) 15% expo
Ailerons: 0.39" (10mm) 10% expo 0.47" (12mm) 10% expo
Control Throw Flap: mid, (15mm) down, landing 20mm down

This product was added to our catalog on Tuesday 30 July, 2013.
