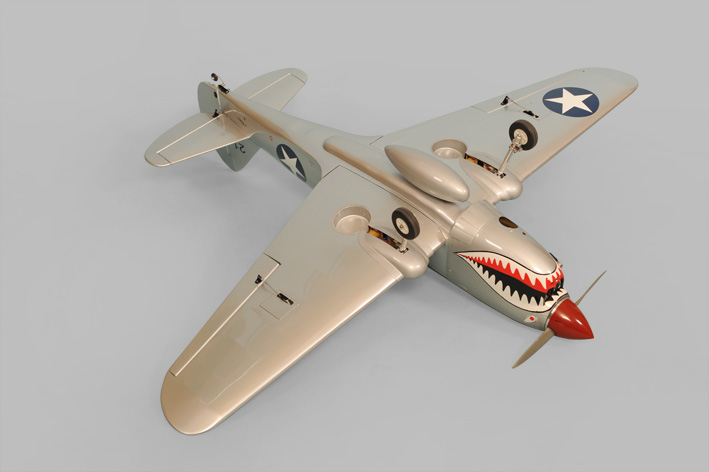

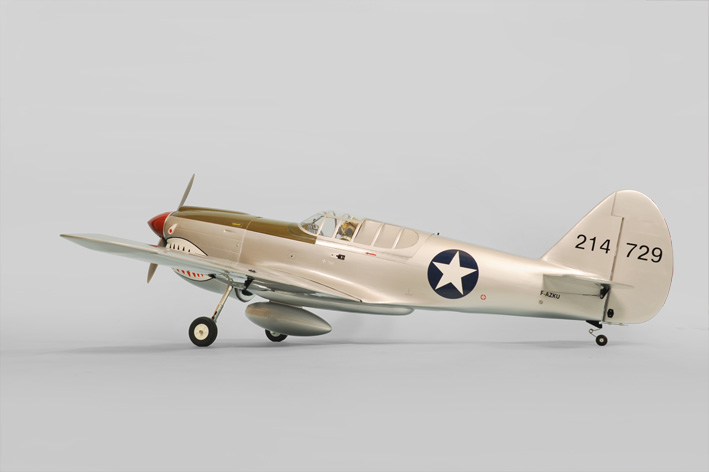

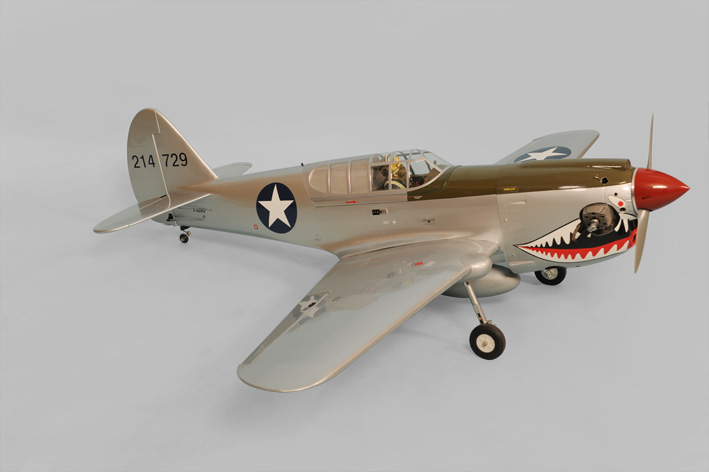

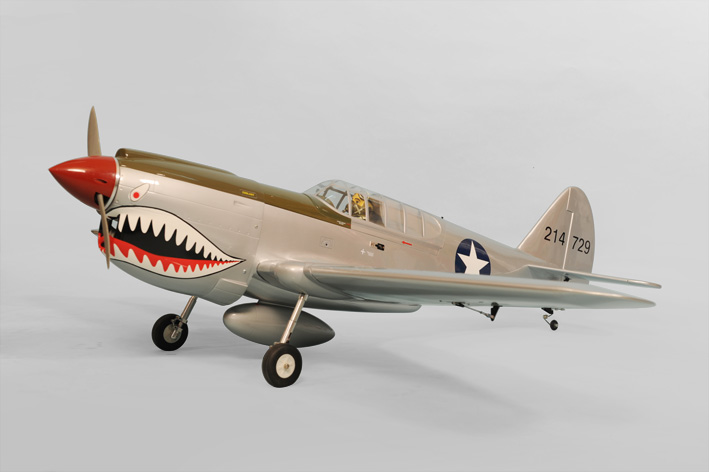

Phoenix P40 War Hawk .61~.91 / 15cc

Rs.23,749.00  Rs.18,999.00
Save: 20% off

Introducing

    The P-40 Warhawk was an American single-engine, single-seat, all-metal fighter and ground attack aircraft that first flew in 1938. The P-40 design was a modification of the previous Curtiss P-36 which reduced development time and enabled a rapid entry into production and operational service. The Warhawk was used by most Allied powers during World War II, and remained in front line service until the end of the war. It was the third most-produced American fighter, after the P51 and  P47

Technical data

- Wingspan: 1615mm (63.5in)
- Length: 1425mm (56.1 in)
- Flying weight: 4500-5000 g
- Wing area: 47.6 dm2
- Wing loading: 95g/dm2
- Wing type: Naca airfoils

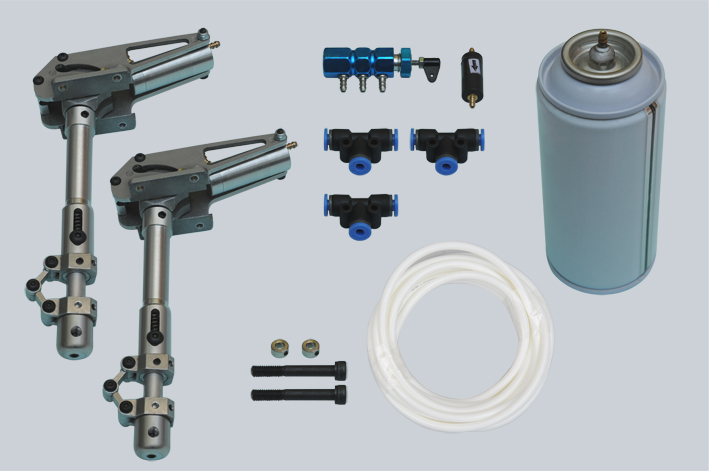

- Retract gear type: Rotary Air-retract 90 degree With CNC Suspension Metal Struts (included)
- Spinner size: 95mm (included)
- Pressure for air tank retract: 7 bar (100 PSI)
- Radio: 6-channel radio system minimum. 7 standard hi-torque servo: 2 aileron; 2 flap
1 elevator; 1 rudder; 1 throttle; 1 air valve control (not included)
- Engine: .91 two stroke plug engine or 15cc gas engine (not included)
- Motor: brushless outrunner 1800-2000 W, 500 KV (not included)
- Recommended receiver battery: 6.0V 2400/2600mAh NiMH (not included)
- Propeller: suit with your engine (not included)
- Gravity CG: 95-100 mm (3.7-3.9 in) Back from  the leading edge of the wing, at the fuselage
- Control throw Ailerons: Low: 9mm up/down, 10% expo; High: 11mm up/down, 10% expo
- Control throw Elevators: Low: 9mm up/down, 12% expo; High: 11mm up/down, 12% expo
- Control throw Rudder: Low: 20mm right/left, 15% expo; High: 35mm right/left, 15% expo
- Control throw Flaps: Mid: 15mm down; Landing: 25mm down
- Experience level: Intermediate
- Plane type: scale military
RECOMMENDED MOTOR AND BATTERY SET UP
- Motor: Size .60-.80 (not included)
- Lipo cell: 6 cells / 4500 – 5500mAh (not included)
- Esc: 80-100A (not included)

Feature

- Designed for compatibility with both GP and EP flight
- Top quality balsa/light plywood construction
- Air-retract With CNC Suspension Metal Struts included
- Full-depth cockpit and instrument panel and pilot included
- Scale plastic bomb included
- Bolt-on two-piece wing for easy transport and setup at the field
- Removable canopy for easy change lipo battery and set up radio
- Strong Light Weight Construction
- Superb flying characteristics, plus an accurate scale outline
- High-quality hardware package included


Sold Out

To be notified when this product is back in stock please click here.

  • Manufactured by: Phoenix Model
