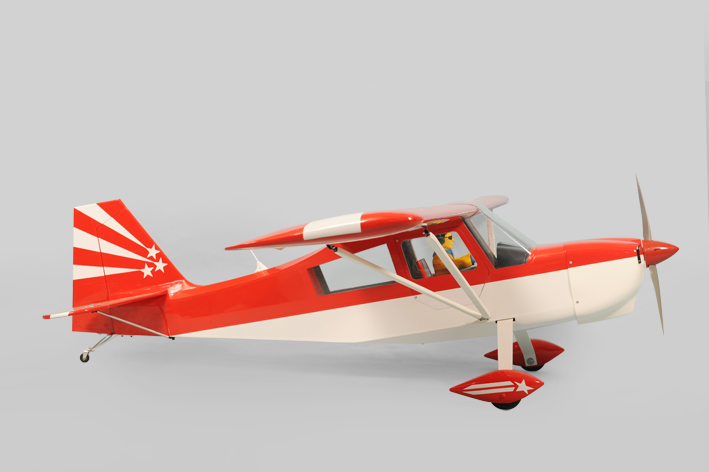

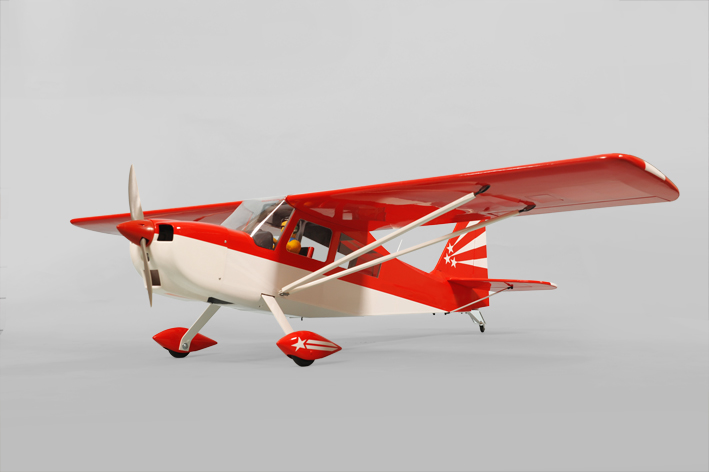

Phoenix Decathlon 1.20 / 20cc

  • Shipping Weight: 60lbs
  • Manufactured by: Phoenix Model

Rs.23,695.76  Rs.18,956.78
Save: 20% off

Sold Out

Introducing

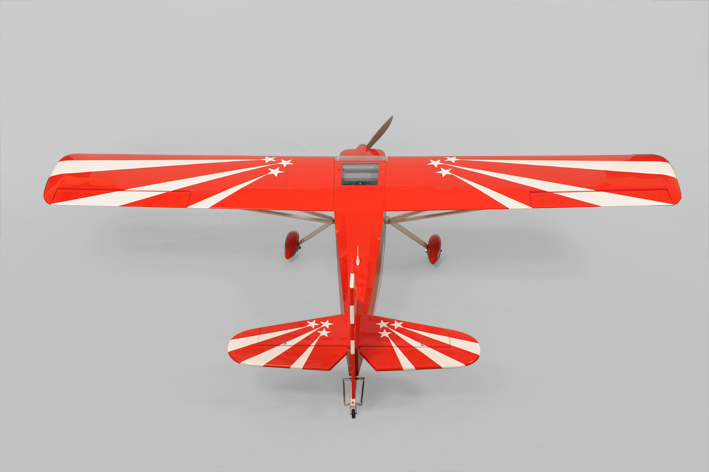

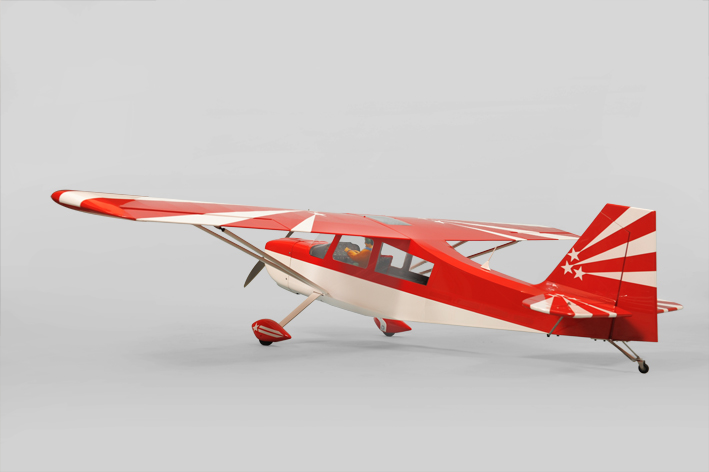

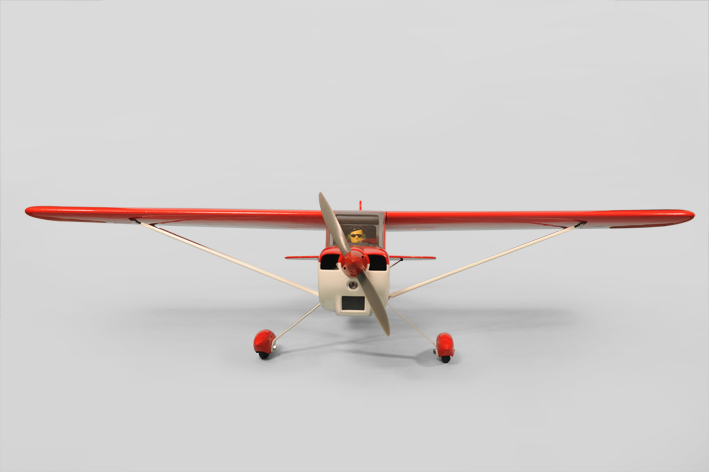

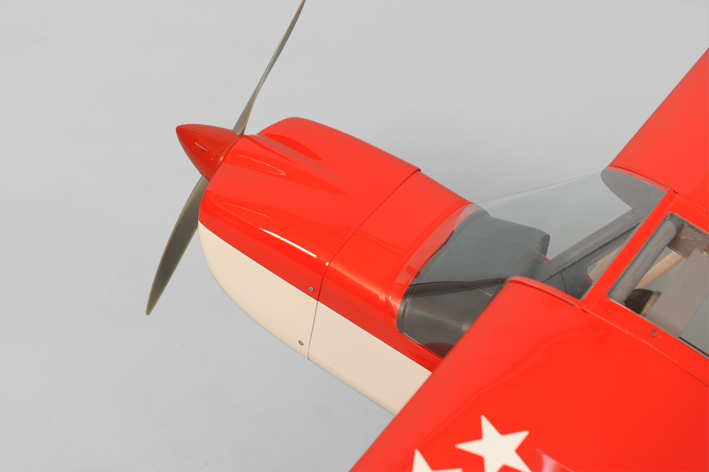

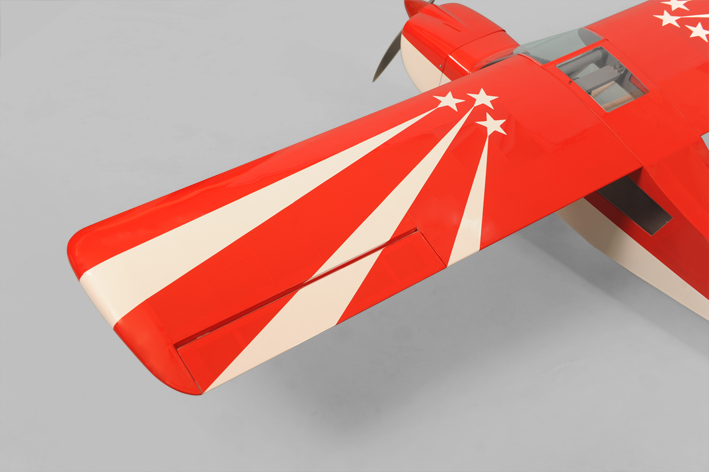

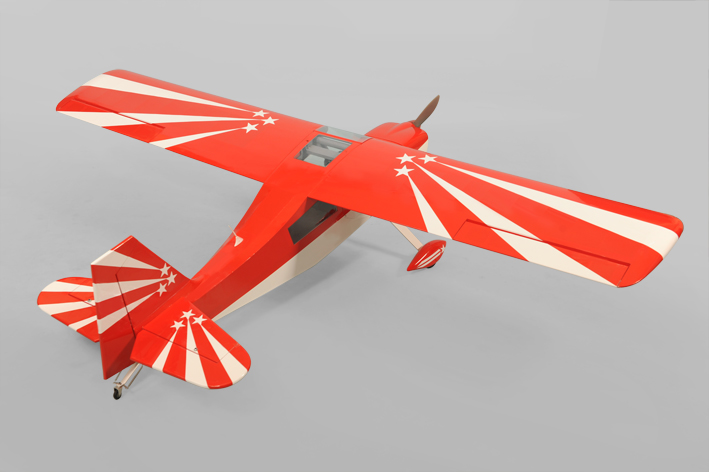

    Phoenix Model has brilliantly captured the spirit of the Super Decathlon with this outstanding. 3-D computer engineering produces parts that fit with absolute precision for straight, strong assembly. The wings are removable should you want to disassemble it for transportation or storage. A real favourite with scale pilots, this is a Decathlon you will be proud to own.

Technical data

- Wingspan: 2100mm (82.6in)
- Length: 1534mm (60.3 in)
- Flying weight: 5.5-6.5 kg
- Wing area: 72.5 dm2
- Wing loading: 75.8g/dm2
- Wing type: Naca airfoils
- Covering type: Genuine ORACOVER®
- Gear type: Aluminum Hi-grade for main gear and spring wire for tail gear (included)
- Spinner size: Plastic 70mm (included)
- Radio: 4 channel minimum (not included)
- Servo: 6 Hi-torque standard servo: 2 aileron; 2 elevator; 1 rudder; 1 throttle (not included)
- Recommended receiver battery: 4.8-6V / 1200-2000mAh NiMH (not included)
- Servo mount: 21mm x 42 mm
- Propeller: suit with your engine (not included)
- Engine: 1.20/ 2-stroke or 1.40/4-stroke glow engine or 15-20cc gas engine (not included)
- Motor: brushless outrunner 1600-2200 W, 450 KV (not included)
- Gravity CG: 100-105 mm (3.9 - 4.1 in) Back from  the leading edge of the wing, at the fuselage
- Control throw Ailerons: Low: 10mm up/down, 10% expo; High: 12mm up/down, 10% expo
- Control throw Elevators: Low: 10mm up/down, 12% expo; High: 12mm up/down, 12% expo
- Control throw Rudder: Low: 20mm right/left, 15% expo; High: 30mm right/left, 15% expo
- Experience level: Intermediate
- Plane type: Scale Civilian
RECOMMENDED MOTOR AND BATTERY SET UP
- Motor: Size .120 (not included)
- Lipo cell: 5-6 cells / 5500 – 6000mAh (not included)
- Esc: 120-160A (not included)

Feature

- Designed for compatibility with both GP and EP flight
- Covered in genuine ORACOVER®
- Top quality balsa/light plywood construction

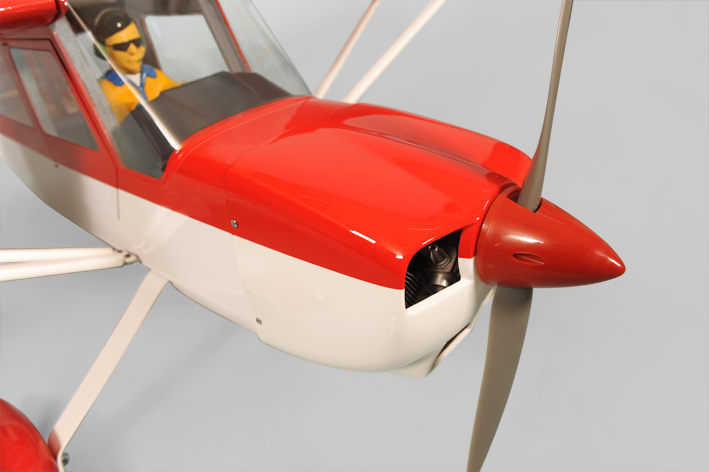

- Full-depth cockpit and instrument panel and pilot included
- Bolt-on two-piece wing for easy transport and setup at the field
- Strong Light Weight Construction
- Superb flying characteristics, plus an accurate scale outline

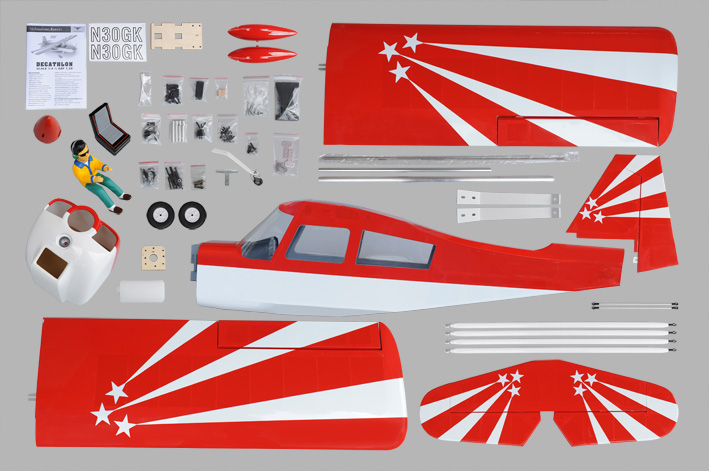

- High-quality hardware package included


This product was added to our catalog on Saturday 16 August, 2014.
