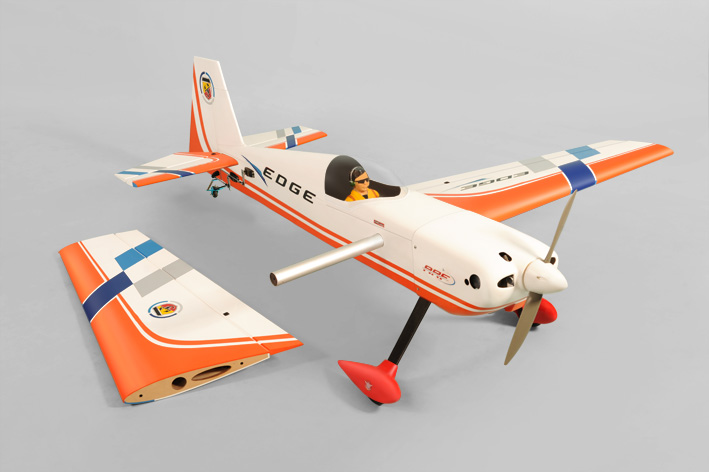

Phoenix Model Edge 540 1.20/22cc

Climb to new heights with the Phoenix Edge 540!
Demanding aerobatics are yours to command with the Phoenix Model Edge 540 1.20 GP/Gas 22cc /EP ARF. It's a scale aerobatic modeler's dream. Craftsmanship, precision engineering, and attention to detail are evident throughout, as is the use of quality materials. Drop in your favorite power setup and radio system, then get ready for thrilling aerobatic adventure!




This is the glow or electric powered, radio controlled, almost ready to fly
Edge 540 .91 -.1.20 Airplane from Phoenix Models.

FEATURES
Construction: Laser cut balsa and ply
Wings: Bolt-on two piece with aluminum wing joiner
Aileron Control: Dual servo
Covering: High quality heat shrink covering
Landing Gear: Two piece prebent aluminum 0.16" (4mm) thick, 0.12"
(3mm) diameter tailwheel wire
Wheels: Main 3" (76mm), Tailwheel 1.25" (32mm)
Wheel Pants: Plastic
Spinner: Red plastic 2.75" (70mm) diameter
Engine Mount: Two piece composite plastic
Fuel Tank: Approximately 16oz (480cc)
Cowl: Fiberglass
Building Time: Ready to fly in 2-4 hours

INCLUDES
ARF Edge 540 .91-1.20 ARF Airplane, Fuel Tank, Landing Gear, Wheels,
Engine Mount, Hardware to Mount Electric Motor, precovered Wings,
Fuselage and Tail sections, Pilot Bust, Decal Sheet and Instruction
Manual

REQUIREMENTS
Radio: At least 4-channel
Servos: Six, (2-elevator, 1-throttle (for glow power), 2-ailerons,
1-rudder) high speed and high torque for best response

Glow Power;
Engine: 2 stroke 1.20 cu in

Electric Power:
Brushless Motor: Emax BL4030 outrunner recommended (not carried)
Electronic Speed Control: 100A (not carried)
LiPo Battery: 6S 22.2V up to 6000mAh
Battery Charger: Compatible with selected battery
Propeller: Compatible with selected engine or electric motor
Building and field equipment

SPECIFICATIONS
Wingspan: 65" (1660mm)
Weight: 10.3-11.4lb (4700-5200g)
Length: 62.6" (1590mm)
Airfoil: Fully symmetrical
Configuration: Mid wing
Center of Gravity, (CG): 4.5" (115mm) back from the leading edge of
the wing at the fuselage sides
Control Throws- Low Rate High Rate
Ailerons: Up & Down 0.59" (15mm) 1.8" (45mm)
Elevator: Up & Down 0.59" (15mm) 1.6" (40mm)
Rudder: Right & Left 0.98" (25mm) 1.8" (45mm)
