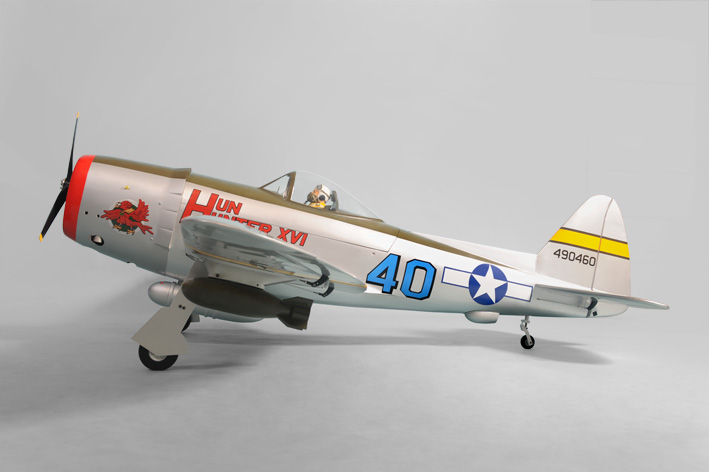

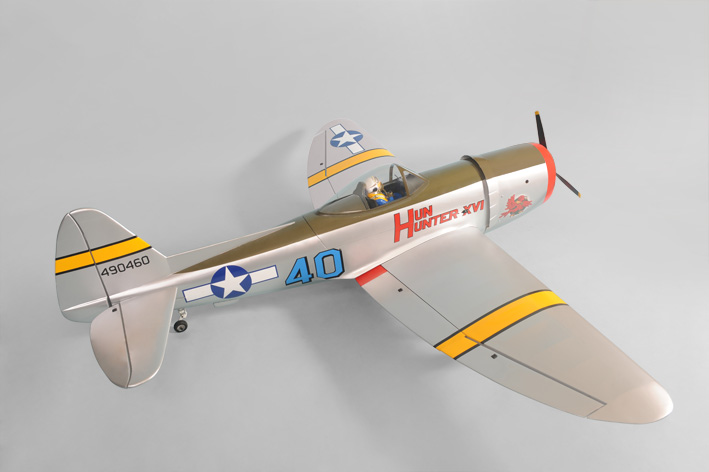

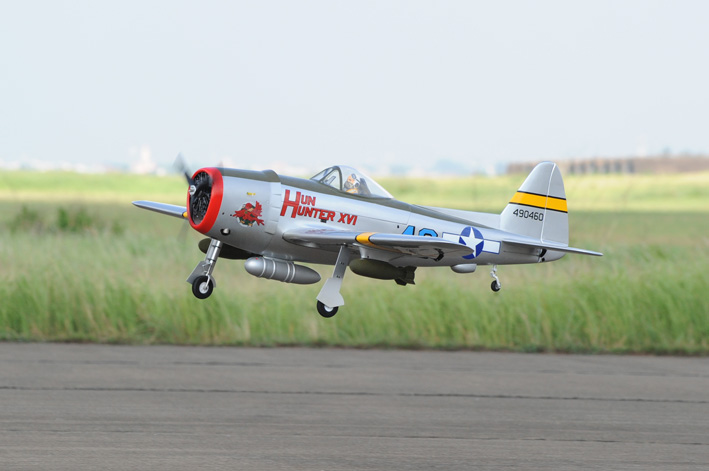

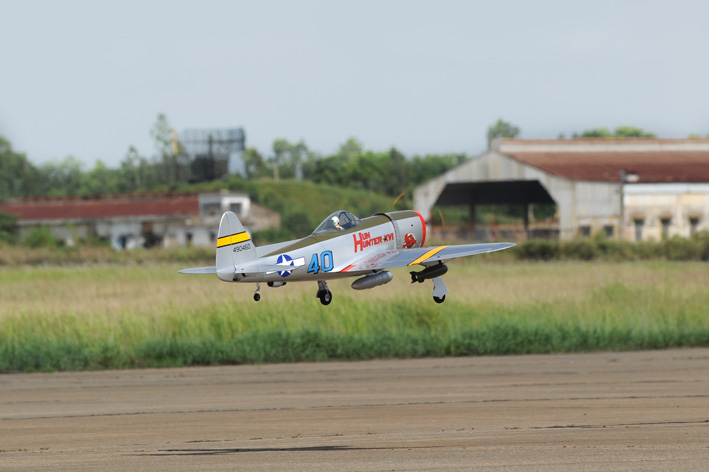

The P-47 Thunderbolt was perhaps the greatest warbird of World War II in terms of all round performance and capability. Top Phoenix Model has recreated this outstanding Airplane to suit size .60-.91 glow plug engines or 15cc Petrol engines. It was designed with the latest laser cut technology and every detail of the airplane has been carefully re-created. The Thunderbolt is built using high quality wood construction and has retracts included. Covered with ORACOVER and supplied with a factory pained cowl, the P-47 is 95% ready to fly. Most hardware is included.
Technical data:
- Wingspan: 1630mm (64.1in)
- Length: 1375mm (54.1 in)
- Flying weight: 3700 – 4500g
- Wing area: 43.8 dm2
- Wing loading: 85g/dm2
- Wing type: Naca airfoils
- Covering type: Genuine ORACOVER®
- Retract gear type: Air-retract With CNC Suspension Metal Struts (included)
- Spinner size: P47 Thunderbolt type (not included)
- Radio: 6 channel minimum (not included)
- Servo: 8 standard servo: 2 aileron; 2 flap; 1 elevator; 1 rudder; 1 retract; 1 throttle (not included)
- Recommended receiver battery: 6.4V 2200mAh Life (not included)
- Servo mount: 21mm x 42 mm
- Propeller: suit with your engine

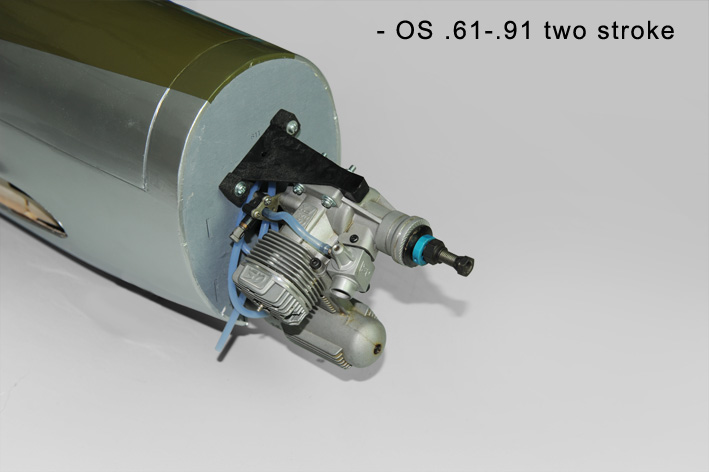

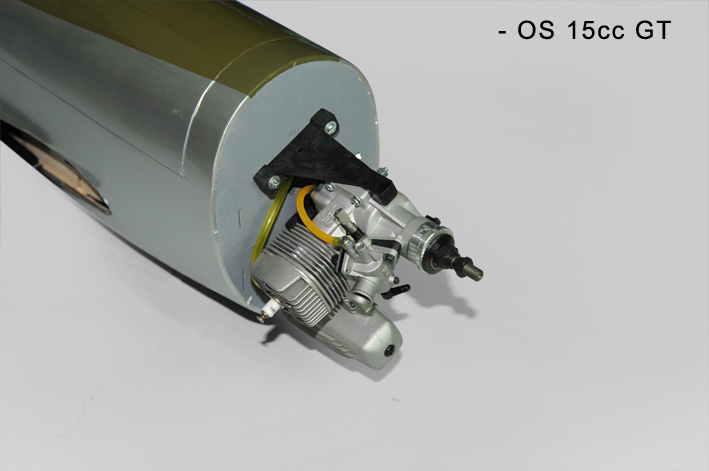

- Engine: .61-.91 / 2-stroke glow or 15cc petrol (not included)

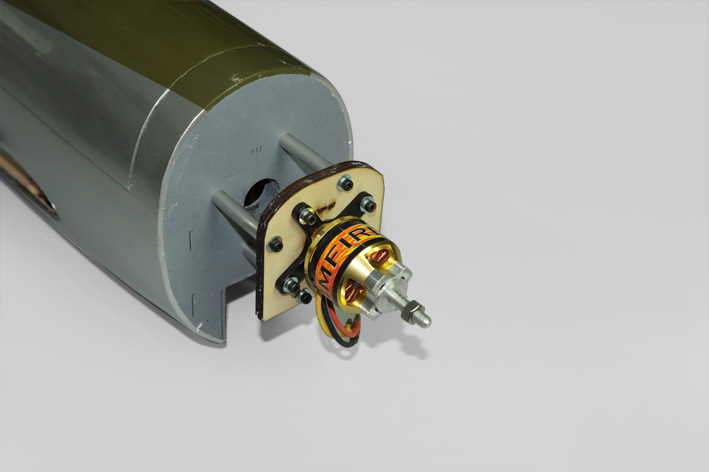

- Motor: brushless outrunner 1800-2000 W, 500 KV (not included)
- Gravity CG: 100 mm (7 in) Back from the leading edge of the wing, at the fuselage
- Control throw Ailerons: Low: 10mm up/down, 10% expo; High: 12mm up/down, 10% expo
- Control throw Elevators: Low: 10mm up/down, 12% expo; High: 12mm up/down, 12% expo
- Control throw Rudder: Low: 20mm right/left, 15% expo; High: 35mm right/left, 15% expo
- Control throw Flaps: Mid: 15mm down; Landing: 25mm down
- Experience level: Intermediate
- Plane type: Scale Military
RECOMMENDED MOTOR AND BATTERY SET UP
- Motor: .80 Size (not included)
- Propeller: 15x6- 15x8 E APC (not included)
- Lipo cell: 6 cells / 5000 – 6000mAh (not included)
- Esc: 80-100 A (not included)
Feature:
- Designed for compatibility with both GP and EP flight
- Covered in genuine ORACOVER®
- Top quality balsa/light plywood construction

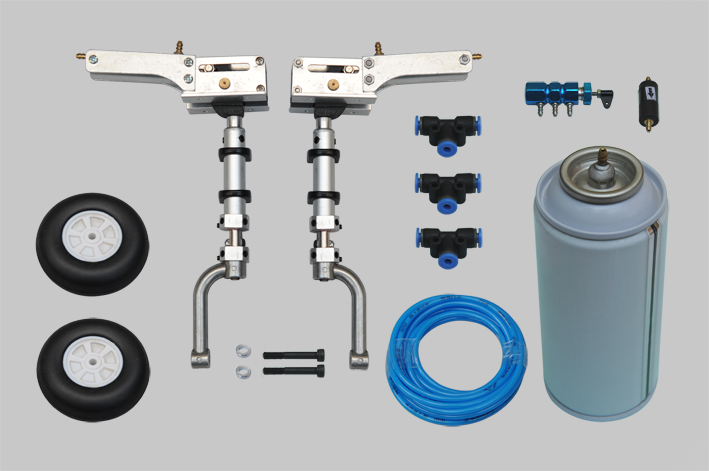

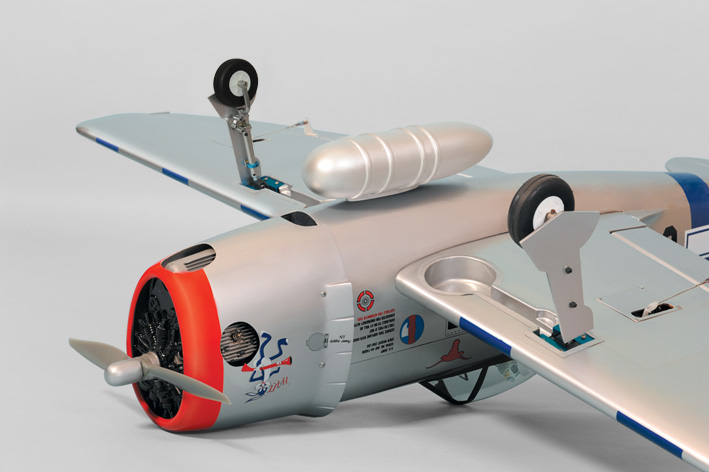

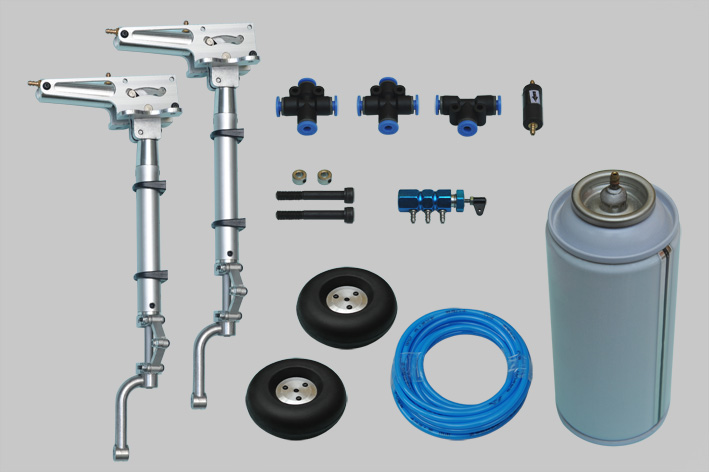

- Air-retract With CNC Suspension Metal Struts included

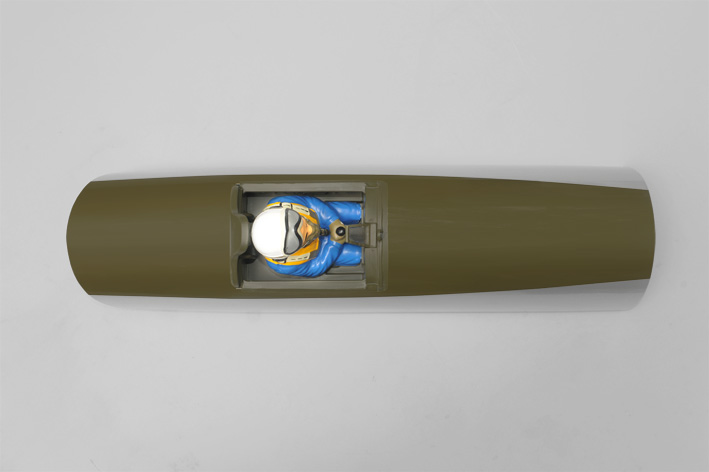

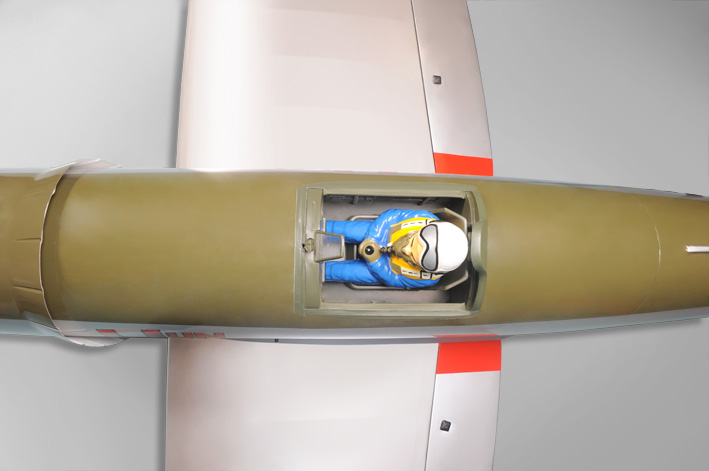

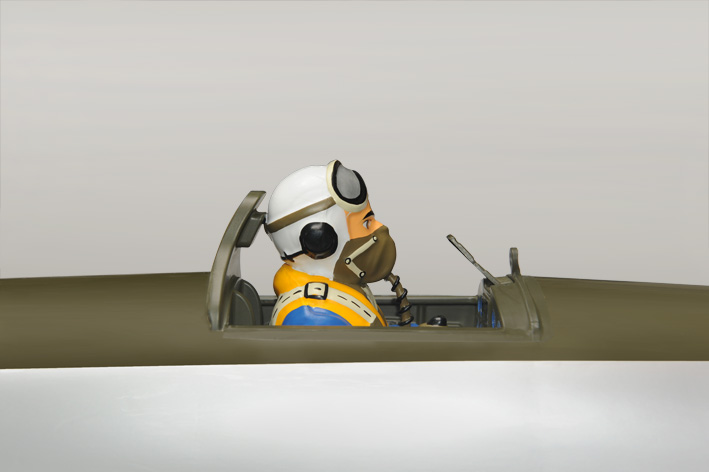

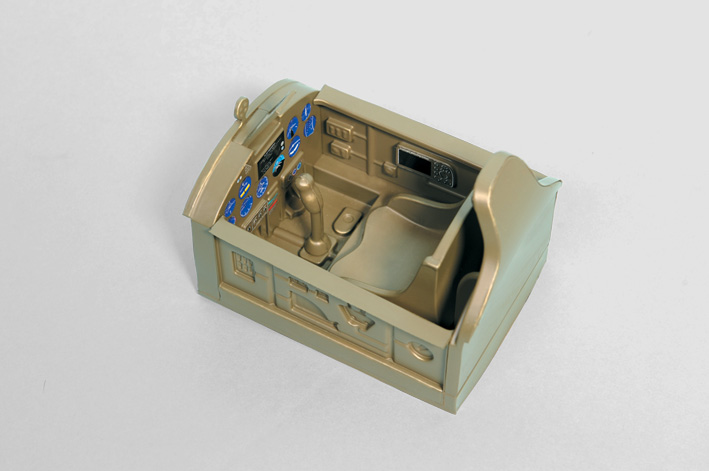

- Full-depth cockpit and instrument panel and pilot included

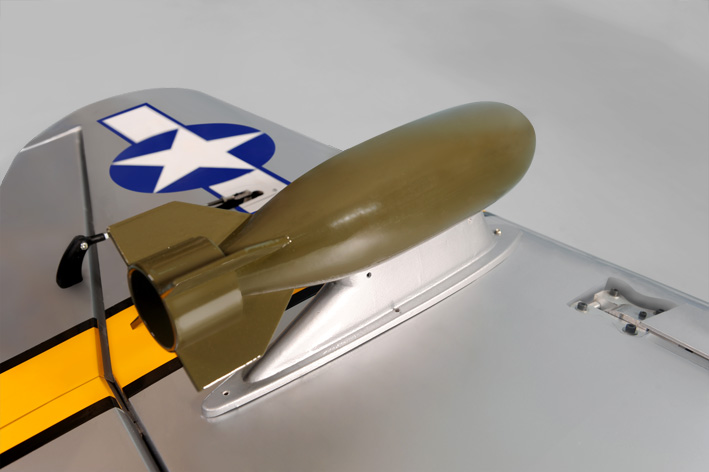

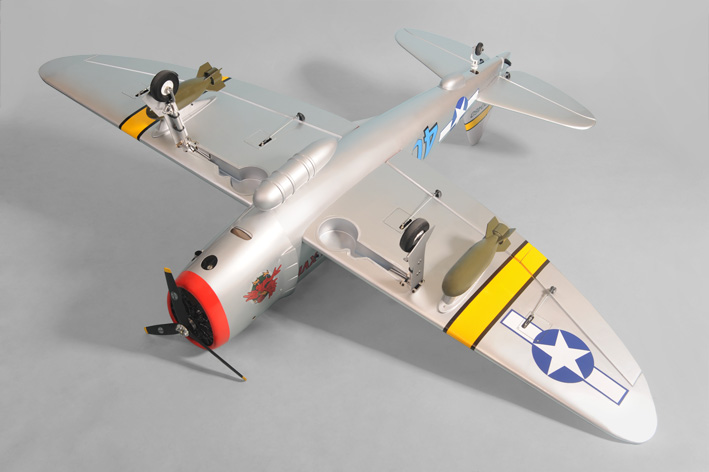

- Scale plastic bomb included

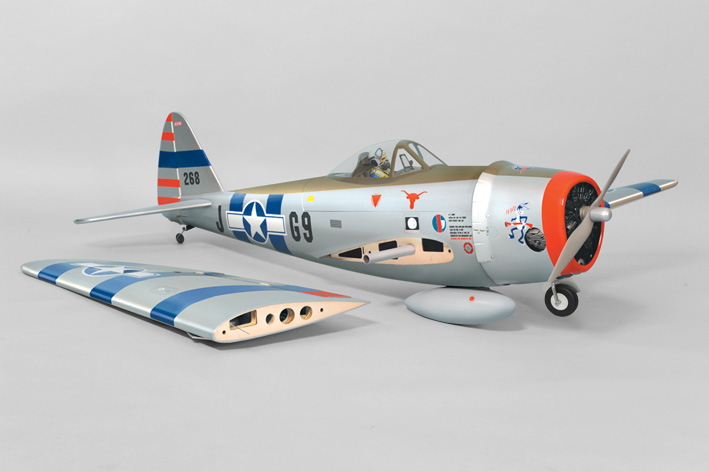

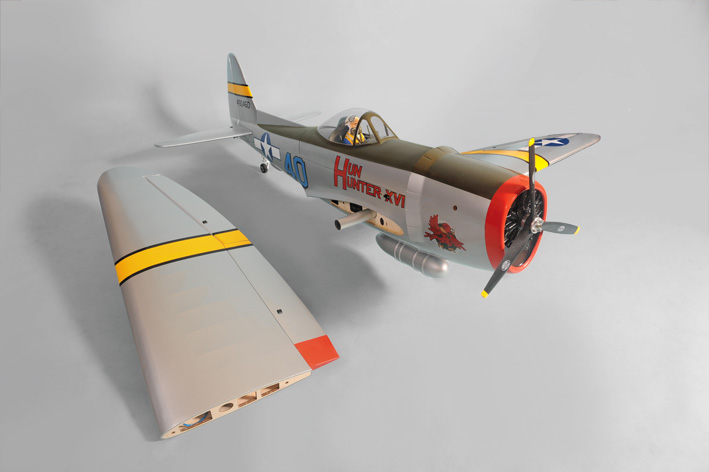

- Bolt-on two-piece wing for easy transport and setup at the field

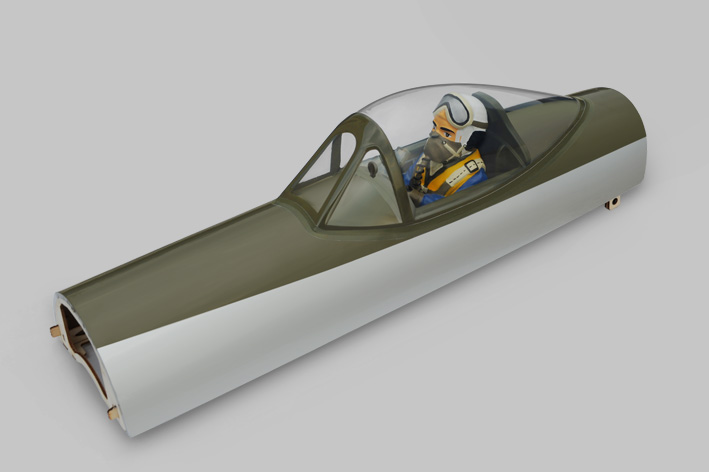

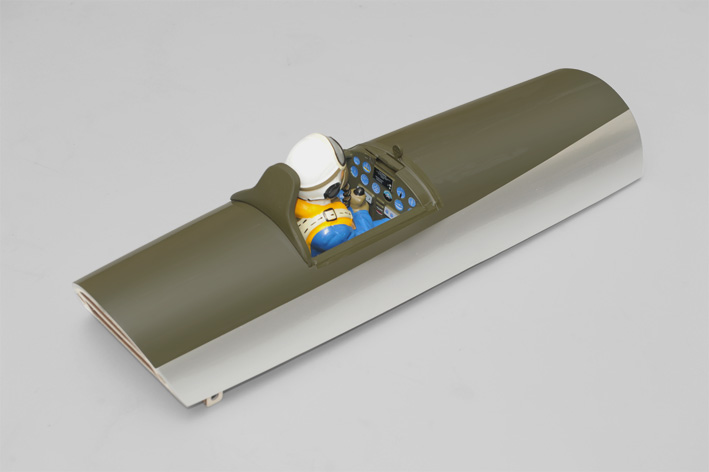

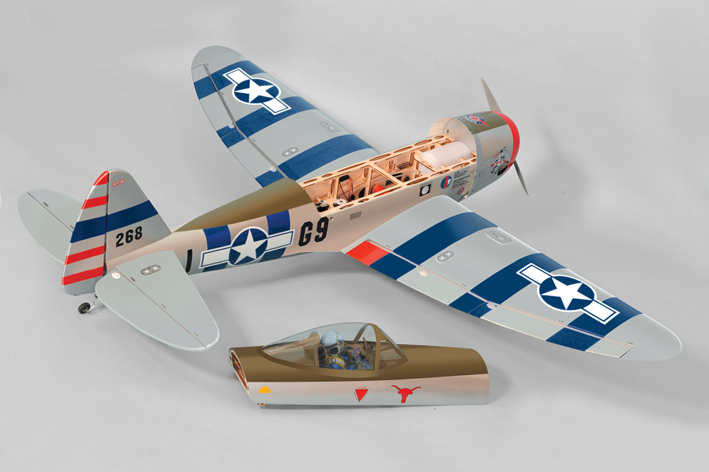

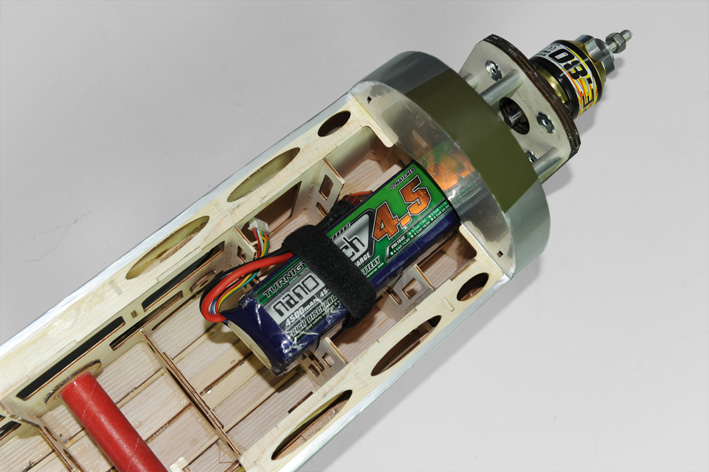

- Removable canopy for easy change lipo battery and set up radio
- Strong Light Weight Construction

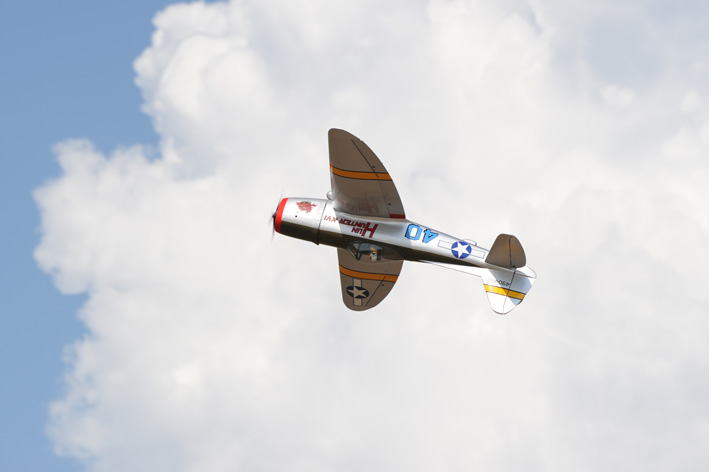

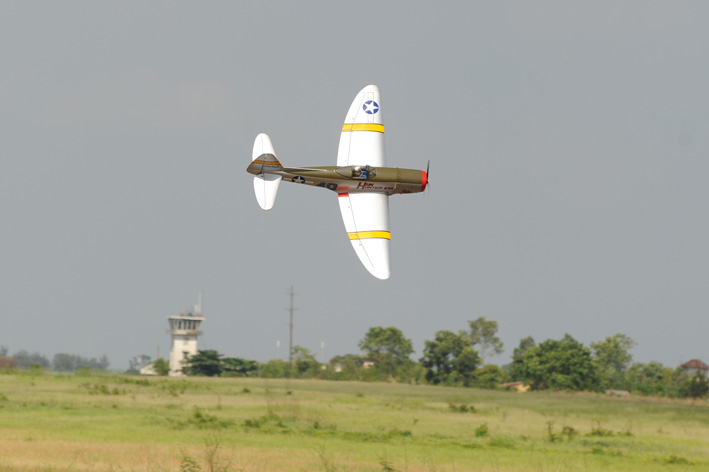

- Superb flying characteristics, plus an accurate scale outline

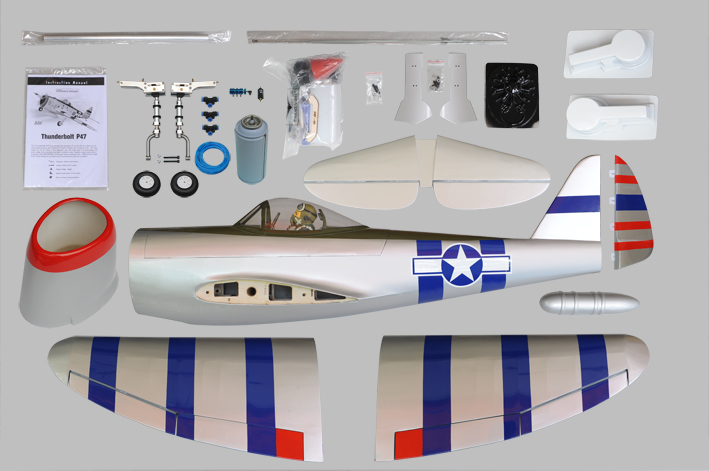

- High-quality hardware package included
