Desert Aircraft 35cc Single Petrol Engine – DA-35

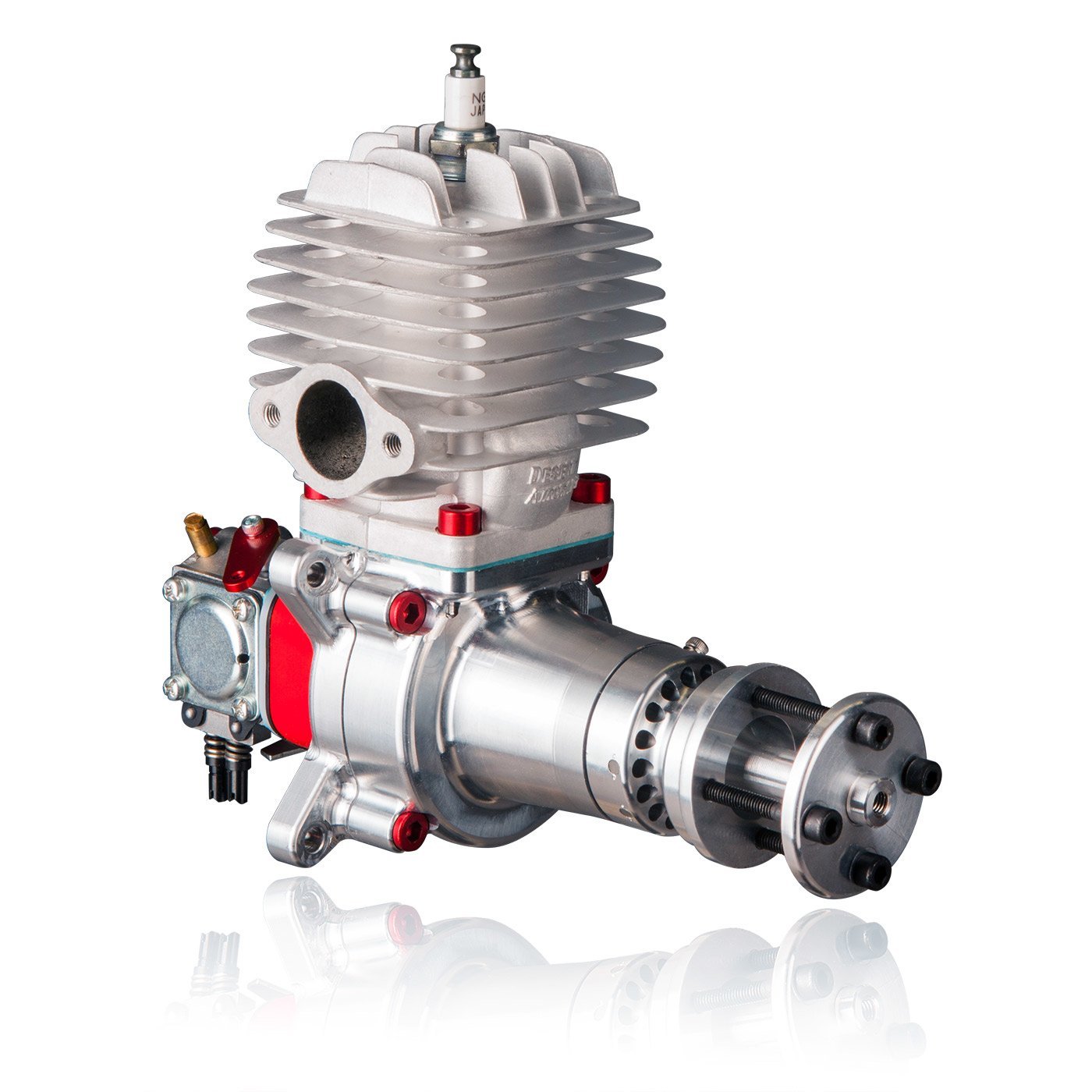

Desert Aircraft DA-35

Excellent power to weight ratio and structural integrity.
Consistent engine performance at all flight attitudes and throttle settings.
Aerobatic power curve.
Exclusive Desert Aircraft designed cylinder, piston and crankshaft.
Aluminium prop shaft extension.
CNC milled, 7075 T-6 alloy crankcase.
Long conrod with gudgeon pin located very near to piston crown to reduce side loads.
Walbro Choke-Carburetor with Desert Aircraft four petal reed valve.
The crankcase of the DA-35 is as on the DA-50 unbelievably compact and very light, which is only possible due to the single counter balance weight on the crankshaft. Each crankcase is CNC machined from the solid, using aircraft alloy 7075-T6. The light cylinder with thin cooling fins and such details as the Aluminum alloy propeller shaft makes possible the extreme light weight without incurring any loss of structural integrity.

In addition, it features Desert Aircraft’s new micro-processor controlled ignition for super smooth operation and performance. The ignition works with 4.8 to 7.2 volt battery packs and has a “Safe Start” feature to prohibit kick backs when starting.

The reed valves designed by Desert Aircraft, and the Walbro carburetor, have been perfectly matched to the engine to achieve even running in all attitudes and throttle settings. A throttle lever is fitted to the carburetor.

Before delivery, as with all DA engines, every DA-35 is thoroughly test run and the carburetor settings fixed. The worldwide DA service and support is unique.

A DA-35 is the ideal engine for your model in the 30-40 cc class!

Specifications:

Displacement: 35 cc
Weight: 950 g
including Ignition: 1040 g
RPM-Range: 1200 – 7200 1/min
Propellers:
Wooden 2-Blade: 20×8″
Carbon 2-Blade: 20×8″, 21×8″
Wooden 3-Blade: 19×11″
Fuel: 1:50
