DLE 60cc Twin Gas Engine

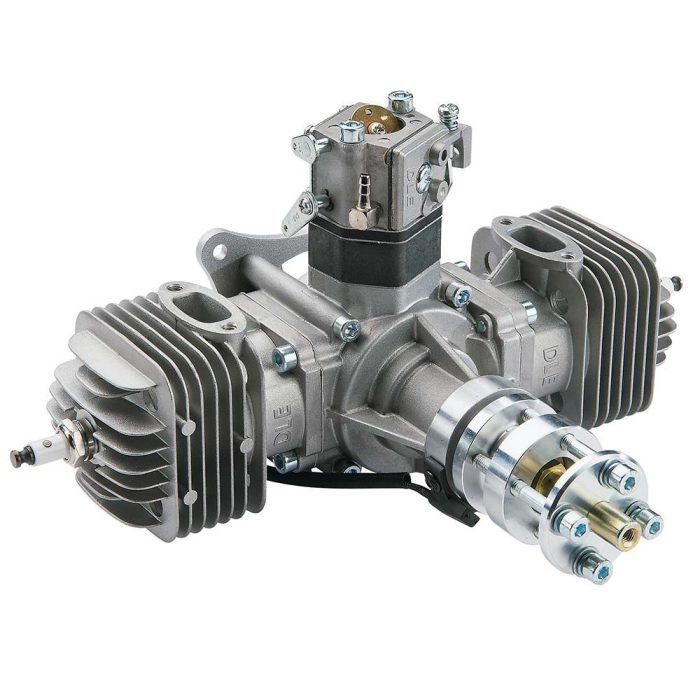

This is the DLE 60cc Twin Cylinder Gasoline Engine.

FEATURES:
Horizontally opposed twin cylinders for low vibration operation
Aluminum alloy crankcase
Electronic ignition for simpler starts, higher performance and
minimal RF noise

INCLUDES:
DLE 60cc Engine
Electronic ignition
NGK CM6 Spark plug
Two Pitts style mufflers
Engine stand-offs

REQUIREMENTS:
Gasoline with at least 87 octane rating
2-cycle oil, mix ratio for this engine is 30 parts gas to one part
oil and must be followed exactly for warranty consideration
and optimum performance
4.8 – 12V battery for ignition
(separate receiver style pack can be used) (LiPo & LiFe requires
voltage regulator)
Propeller: 22×10, 23×8, 23×10, 24×8
Field equipment

SPECIFICATIONS:
Displacement: 61 cc (3.7 cu in)
Bore: 1.42 in (36 mm)
Stroke: 1.18 in (30 mm)
Weight, engine: 4.37 lb (1.56 kg)
Weight, muffler: 2.82 oz./ 3.00 oz./(80 g/85 g)
Weight, ignition module: 7.44 oz. (211 g)
Output: 7.0 hp @ 8,500 RPM
Static Thrust: 15.2kg Pulling Force/100 meters altitude
13.5kg Pulling Force/1,800 meters altitude
Gasoline/Oil Mixture: 30:1
Gasoline Octane Rating: 87
Recommended Propellers: 22×10, 23×8, 23×10, 24×8
Carburetor Adjustments;
Low Speed Needle: 1.5 turns out as a starting point, adjust for a
smooth idle and a reliable transition to high throttle
High Speed Needle: 1.5 turns out from closed, adjust needle to peak
RPM, if engine slows or dies at full throttle, the high-speed
mixture is likely too lean
Muffler Length: 5″ (128mm)
Muffler Diameter: 2″ (50mm)
Exhaust Outlet Length: 3.4″ (85.5mm)
Exhaust Outlet Diameter: 0.79″ (20mm)
Distance Between Mounting Hole Centers Same Side: 2.7″ (69mm)
Distance Between Mounting Hole Centers Opposite Side: 2.7″ (69mm)
Width from Cylinder Head to Cylinder Head: 8.5″ (215mm)
