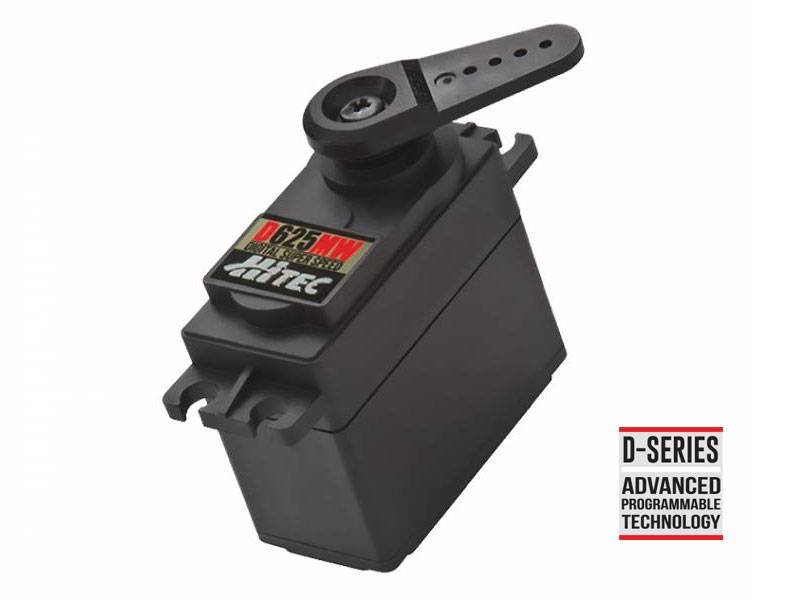

Hitec D-625MW 32-Bit High Speed Metal Gear Servo

Product Description
The metal D-625MW is part of our D-Series servo line. All Hitec D-Series servos have been designed using our brand new, cutting edge, custom engineering. Combining industry leading high-resolution, state-of-the-art ultra-response technology with a 32-bit MCU and 12-bit ADC for unprecedented programmability and flexibility, these servos deliver significantly smoother movement. The speedy, powerful line operates on a wide 4.8 ~ 8.4 voltage range, allowing use with any common battery chemistry without the need for adapters or regulators. Featuring Hitec’s industry standard 25-tooth output spline with 3mm hex screw, each D-Series servo brings monster performance never known before in the market.

This is the upgraded version of the HS-5665MH

Features
Programmable PWM Digital Amplifier
32-Bit MCU with 12-Bit ADC Circuitry
4096 Resolution
1M Cycle Long Life Potentiometer
Wide Operating Voltage (4.8 ~ 8.4 Volts DC)
Dual Ball Bearing Supported Output Shaft
25-Tooth Output Spline

Programmable Functions
End Point Adjustments
Direction
Fail Safe
Dead Band
Speed (Slower)
Soft Start Rate
Overload Protection
Data Save / Load
Program Reset

D625MW Servo Specifications
Performance Specifications
Operating Voltage Range (Volts DC) 4.8V ~ 6.0V ~ 7.4V
Speed (Second @ 60°) 0.20 ~ 0.15 ~ 0.13
Maximum Torque Range oz. / in. 87 ~ 122 ~ 139
Maximum Torque Range kg. / cm. 6.3 ~ 8.8 ~ 10.0
Current Draw at Idle 30 mA
No Load Operating Current Draw 500 mA
Stall Current Draw 2,650 mA
Dead Band Width 2 µs

Physical Specifications
Dimensions (Inches) 1.59 x 0.77 x 1.48
Dimensions (Metric) 40.6 x 19.8 x 37.8
Weight (Ounces) 2.11
Weight (Gram) 57.0
Circuit Type 32bit Programable Digital
Motor Type 3 Pole Metal Brush Ferrite
Gear Material Metal
Bearing Type Dual Ball Bearing
Output Shaft (type / Ømm) H25T
Case Material Plastic
Dust / Water Resistance N / A
Connector Gauge (AWG) / Strand Count 22 / 60
