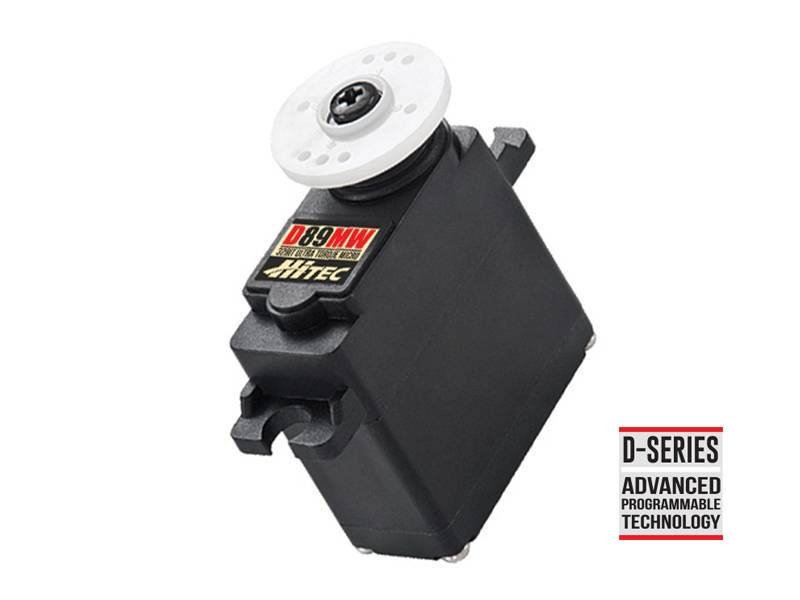

Hitec D-89MW 32-Bit Wide Voltage Micro Metal Gear Servo

Product Description
With 32-bit high resolution, ultra-response technology and wide voltage operation, the mighty micro-sized D89MW delivers solid power in a lightweight package. Its efficient coreless motor makes this mini servo a standout in its class.

D89MW Servo Specifications
Performance Specifications
Operating Voltage Range (Volts DC) 4.8V ~ 7.4V
Speed (Second @ 60°) 0.17 ~ 0.11
Maximum Torque Range oz. / in. 74 ~ 118
Maximum Torque Range kg. / cm. 5.3 ~ 8.5
Current Draw at Idle 30 mA
No Load Operating Current Draw 300 mA
Stall Current Draw 2,900 mA
Dead Band Width N / A
Physical Specifications
Dimensions (Inches) 1.14 x 0.51 x 1.18
Dimensions (Metric) 29.0 x 13.0 x 30.0
Weight (Ounces) 0.88
Weight (Gram) 25.0
Circuit Type 32bit Programmable Digital
Motor Type Coreless Metal Brush
Gear Material 5 Metal Gears
Bearing Type Dual Ball Bearing
Output Shaft (type / Ømm) 25 / 6
Case Material Plastic
