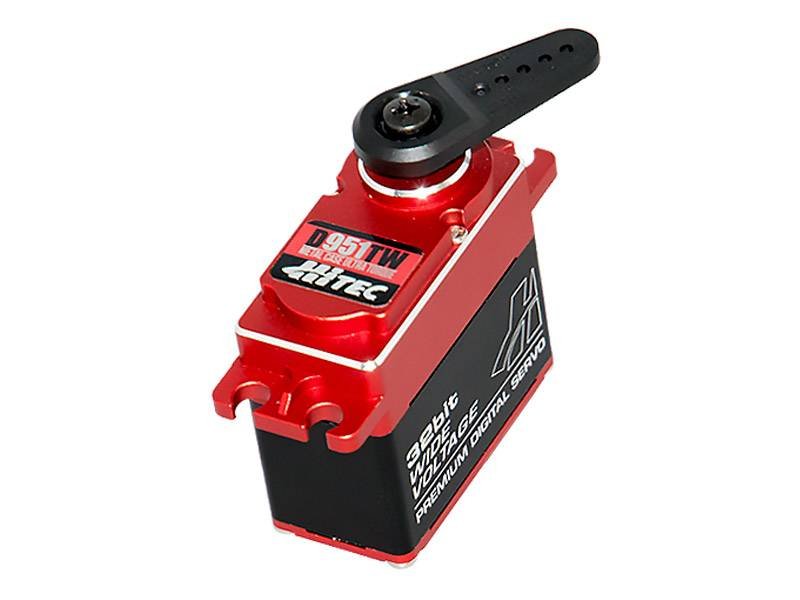

Hitec D-951TW 32-Bit Metal Case High Torque Titanium Gear Servo

Product Description
Hitec’s D-Series servo line sets new standards for advanced, programmable technology. Powered by our 32-bit MCU (Microcontroller Unit) and 12-bit ADC (Analog to Digital Converter) industrial science, these powerhouses dominate the servo arena. Their potent combination of wide voltage capabilities, high resolution, rapid response, and patented Smart Sense technology brings maximum performance to all radio control applications. The members of this particular D-Series group are all designed with our extremely durable titanium gears; and the D941TW, D946TW and D951TW trio boast full metal cases. When you demand ultimate reliability and unprecedented advanced engineering, look to the power of the D-Series servos!

Features
High Response Circuitry
Wide Voltage Capabilities
32-Bit MCU Technology
Full Programmability
Smart Sense Technology for Servo Analytics
25-Tooth Output Spline

Programmable Functions
End Point Adjustments
Direction
Fail Safe
Dead Band
Speed (Slower)
Soft Start Rate
Overload Protection
Data Save / Load
Program Reset

D951TW Servo Specifications
Performance Specifications
Operating Voltage Range (Volts DC) 4.8V ~ 6.0V ~ 7.4V
Speed (Second @ 60°) 0.23 ~ 0.17 ~ 0.14
Maximum Torque Range oz. / in. 292 ~ 403 ~ 486
Maximum Torque Range kg. / cm. 21.0 ~ 29.0 ~ 35.0
Current Draw at Idle 30 mA
No Load Operating Current Draw 500 mA
Stall Current Draw 6,200 mA
Dead Band Width 1 µs
Physical Specifications
Dimensions (Inches) 1.57 x 0.79 x 1.50
Dimensions (Metric) 40.0 x 20.0 x 38.0
Weight (Ounces) 2.4
Weight (Gram) 68.0
Circuit Type 32bit Programable Digital
Motor Type Coreless Metal Brush
Gear Material Titanium
Bearing Type Dual Ball Bearing
Output Shaft (type / Ømm) H25T
Case Material: Aluminum
Dust / Water Resistance: Splash Proof
Connector Gauge (AWG) / Strand Count: 20 / 80
