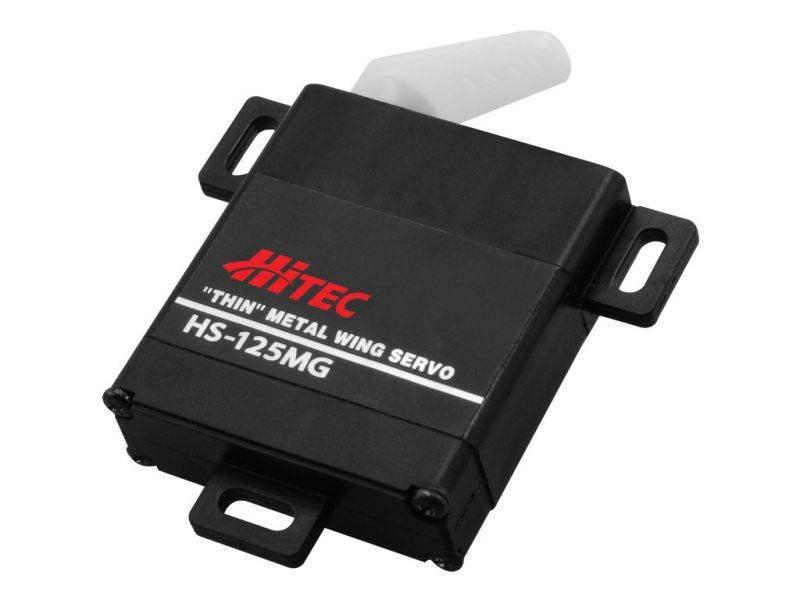

Hitec HS-125MG Slim Wing

Product Description
The analog HS-125MG is truly a super thin servo measuring 1.2″ x 0.4″ x 1.3″. Featuring Hitec’s MP Gear, the HS-125MG is very durable, and a perfect fit in the slim wings of today’s high performance gliders.

Features
Super Thin Wing Servo
Strong Metal Gears
Dual Ball Bearings
Perfectly Designed to Fit in Slim Aircraft and Glider Wings

HS-125MG Servo Specifications
Performance Specifications
Operating Voltage Range (Volts DC) 4.8V ~ 6.0V
Speed (Second @ 60°) 0.17 ~ 0.13
Maximum Torque Range oz. / in. 42 ~ 49
Maximum Torque Range kg. / cm. 3.0 ~ 3.5
Current Draw at Idle 8 mA
No Load Operating Current Draw 230 mA
Stall Current Draw 1,200 mA
Dead Band Width 1 µs
Physical Specifications
Dimensions (Inches) 1.18 x 0.39 x 1.33
Dimensions (Metric) 30.0 x 10.0 x 34.0
Weight (Ounces) 0.84
Weight (Gram) 24.0
Circuit Type HT7003 Analog SMT
Motor Type 3 Pole Metal Brush Ferrite
Gear Material Metal
Bearing Type Dual Ball Bearing
Output Shaft (type / mm) Micro 23
Case Material Plastic
