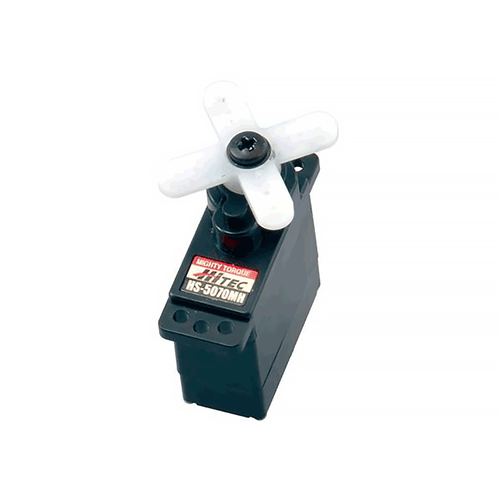

Hitec HS-5070MH Ultra Torque Servo

Our new strong and speedy digital HS-5070MH possess the performance qualities necessary for the new class of 42-48 inch performance 3D aircraft and 450-size helicopters. Featuring Hitec’s durable metal gears, cored motors, top ball bearings and Generation 1 circuitry, these new additions to our vast servo family will have all your planes and helis flying with remarkable precision and power. The programmable HS-5070MH delivers an impressive 53 oz.-in. of torque at 7.4 volts. Fast, forceful, fantastic! We Are Hitec!

Programmable Functions
End Point Adjustments
Direction
Fail Safe
Dead Band
Speed (Slower)
Data Save / Load
Program Reset

Performance Specifications
Operating Voltage Range (Volts DC) 6.0V ~ 7.4V
Speed (Second @ 60°) 0.14 ~ 0.12
Maximum Torque Range oz. / in. 42 ~ 52
Maximum Torque Range kg. / cm. 3.0 ~ 3.7
Current Draw at Idle 3 mA
No Load Operating Current Draw 240 mA
Stall Current Draw 1,300 mA
Dead Band Width 2 µs
Physical Specifications
Dimensions (Inches) 0.92 x 0.45 x 1.14
Dimensions (Metric) 23.6 x 11.6 x 28.1
Weight (Ounces) 0.50
Weight (Gram) 14.2
Circuit Type G1 Programable Digital
Motor Type 3 Pole Metal Brush Neodymium
Gear Material Metal
Bearing Type Top Ball Bearing
Output Shaft (type / Ømm) Micro 25
Case Material Plastic
Dust / Water Resistance N / A
Connector Gauge (AWG) / Strand Count 28 / 20
Radio Control Applications
Parkflyer < 65 oz. Sport Plane 36 - 41 oz. Sailplane <2 meter / DLG Electric Helicopter 500-750mm Gas Helicopter 30-39 Class On Road 1/16th Buggies 1/16th Short Course Truck 1/8th Power Boat 1/16th
