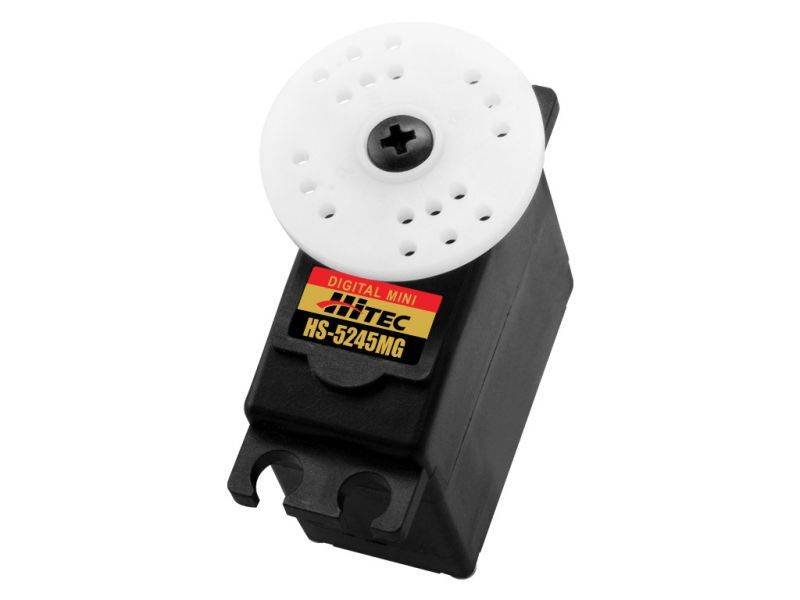

Hitec HS-5245MG Mini Metal Gear Servo

Product Description
With a custom programmable digital circuit and our strong metal and M/P gear train technology, the HS-5245MG is ideal for applications that call for a small, lightweight, fast and high torque servo.

Features
High Speed and High Torque in a Mini Package
Durable Metal Gears
Dual Ball Bearings
Standard Programmable Digital Circuit for Greater Holding Power
Fast, High Torque

Programmable Functions
End Point Adjustments
Direction
Fail Safe
Dead Band
Speed (Slower)
Data Save / Load
Program Reset

HS-5245MG Servo Specifications
Performance Specifications
Operating Voltage Range (Volts DC): 4.8V ~ 6.0V
Speed (Second @ 60°): 0.15 ~ 0.12
Maximum Torque Range oz. / in.: 61 ~ 76
Maximum Torque Range kg. / cm.: 4.4 ~ 5.5
Current Draw at Idle: 3 mA
No Load Operating Current Draw: 300 mA
Stall Current Draw: 1,200 mA
Dead Band Width: 4 µs

Physical Specifications
Dimensions (Inches):1.27 x 0.66 x 1.21
Dimensions (Metric): 32.4 x 16.8 x 30.8
Weight (Ounces): 1.12
Weight (Gram): 32.0
Circuit Type: G1 Programable Digital
Motor Type: 3 Pole Metal Brush Ferrite
Gear Material: Metal
Bearing Type: Dual Ball Bearing
Output Shaft (type / Ømm): Standard 24
Case Material: Plastic
Dust / Water Resistance: N / A
Connector Gauge (AWG) / Strand Count: 25 / 40
