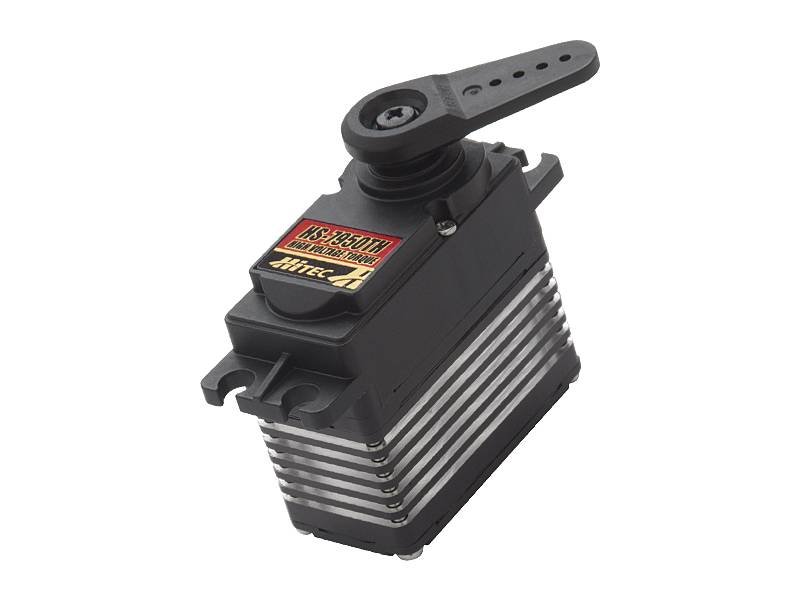

Hitec HS-7950TH High-Voltage Ultra-Torque Titanium Coreless Serv

Product Description
Hitec’s strongest servo period, the “Ultra Torque” HS-7950TH is designed to operate on a two cell LiPo Pack. Featuring our high resolution “G2” second generation programmable digital circuit and our indestructible Titanium gears, the HS-7950TH has the performance and durability you’ve come to expect from a Hitec servo. Other features in the HS-7950TH include a 7.4V optimized coreless motor, integrated heat sink case, and a top case with two hardened steel gear pins supported by axial brass bushing.
The HS-7950TH has been designed for the most demanding hobby applications including the largest aircraft and monster trucks. Featuring a titanic 403 oz./in. of torque at 6.0 volts, while still maintaining a respectable 0.15 second transit time.

Features
G2 Digital Circuit
Titanium Gear Train (MK first gear)
Ultra Performance Coreless Motor
Heatsink Case
(8) O-Rings for Water/Dust/Fuel protection
Dual Ball Bearing Supported Output Shaft

Programmable Functions
End Point Adjustments
Direction
Fail Safe
Dead Band
Speed (Slower)
Overload Protection
Resolution
Data Save / Load
Program Reset
*These features are only programmable with the HFP-20, HPP-20 or HPP-21 programmers.

Accessories
Titanium Gear Set | Link |
Metal / Karbonite 1st Gear Set | Link |
Plastic / Aluminum Case Set | Link |
Applicable Horns

HS-7950TH Servo Specifications
Performance Specifications
Operating Voltage Range (Volts DC) 6.0V ~ 7.4V
Speed (Second @ 60°) 0.17 ~ 0.14
Maximum Torque Range oz. / in. 403 ~ 486
Maximum Torque Range kg. / cm. 29.0 ~ 35.0
Current Draw at Idle 10 mA
No Load Operating Current Draw 440 mA
Stall Current Draw 9,000 mA
Dead Band Width 2 µs
Physical Specifications
Dimensions (Inches) 1.57 x 0.79 x 1.50
Dimensions (Metric) 40.0 x 20.0 x 38.0
Weight (Ounces) 2.29
Weight (Gram) 65.0
Circuit Type G2 Programable Digital
Motor Type Coreless Metal Brush
Gear Material Titanium
Bearing Type Dual Ball Bearing
Output Shaft (type / Ømm) Standard 24
Case Material Plastic / Aluminum
Dust / Water Resistance Splash Proof
Connector Gauge (AWG) / Strand Count 22 / 60
