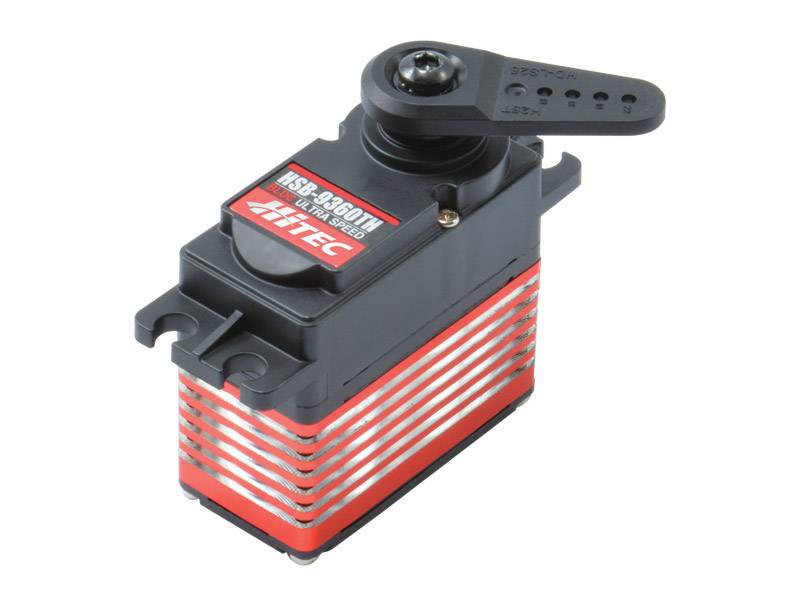

Hitec HSB-9360TH W/o Pad High Speed Brushless Servo

HSB-9360TH
20mm, High Speed, Brushless, Titanium Gear Servo (7.4V)

Our high-performance HSB-9360TH industrial actuator features a brushless motor for maximum efficiency and durable machined aluminum-composite case to dissipate heat. Optimized to deliver over 236 oz-inches of torque at a lightning-fast speed of 0.06 sec. @ 60 degrees, the HSB-9360TH also offers dual ball bearings, three titanium gears, Digital amp with MOSFET drive, and PWM protocol. Program numerous parameters to optimize the installation and performance for your specific needs. This is a reliable and easy to use option for many demanding industrial applications.

Voltage Range 6.0V – 7.4V
No-Load Speed (7.4V) 0.06 sec/60°
No-Load Speed (6.0V) 0.07 sec/60°
Stall Torque (6.0V) 236 oz-in (17 kg.cm)
Stall Torque (7.4V) 236 oz-in (17 kg.cm)
Max PWM Signal Range 700-2300μsec
Travel per µs (Stock) .074°/μsec
Max Rotation (Stock) 119°
Pulse Amplitude 3-5V
