Brand: Hitec

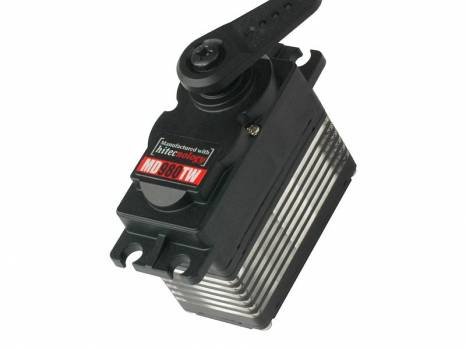

Hitec MD980TW 22.4mm Coreless Wide Voltage Titanium Gear Servo

₹14,639.83 excl. GST₹17,275.00 Incl. GST
Out of stock
24 people are viewing this right now

    Hitec MD980TW Servo
    22.4mm, Coreless, Wide Voltage, Titanium Gear

    Performance Specifications
    Command Protocol: PWM / TTL
    Operating Voltage (V) Min: 4.80
    Max: 7.40
    Weight (g) Min: 78.20
    Stall Torque (kgf•cm / oz•in) Min: 26.0 / 361.07 Max: 44.0 / 611.05
    No Load Speed (sec/60°) Min: 0.28 Max: 0.17
    Stall Current (mA) Min: 4800 Max: 6200
    Circuit: Digital
    Rotation: Standard
    Operating Voltage (V) Min: 4.80 Max: 7.40
    Torque Range (KG/CM): 44.00
    Max Speed (SEC/60) 0.17

    Physical Specifications
    Case Size (mm) 22.40
    Dimensions (mm) 43.8 x 22.4 x 40.0
    Weight (g) 78.20
    Motor Type Coreless Metal Brush
    Potentiometer Magnetic Encoder
    Gear Material 1 Metal-Plastic & 4 Titanium Alloy
    Horn Gear Spline 25 Segment / Ø6.0
    Case Material Engineering Plastic / Aluminum
    IP Rating IP54

    Weight 1 kg
