Brand: JR PROPO

JR XPort Duo XB1-14DRS

Name: JR XPort Duo XB1-14DRS
SKU: JR XPort Duo XB1-14DRS
Availability: OutOfStock

₹10,479.48 excl. GST₹13,413.73 Incl. GST

Out of stock

30 people are viewing this right now

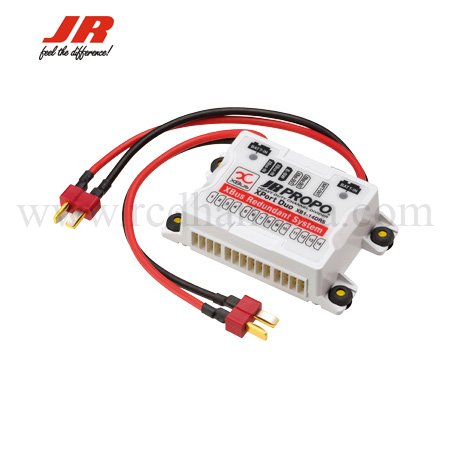

JR XPort Duo XB1-14DRS (Dual Redundancy System)

The ultimate in flexibility for giant scale aircraft setup!

Looking for the ultimate in setup flexibility for your giant-scale airplane? Look no further than JR’s new XPort Duo.

The XPort Duo integrates everything one could need to setup a giant-scale or complex model – 14 programmable PWM outputs, dual receiver inputs, dual battery inputs, and dual XBus outputs with HD power.

The key feature of the XPort Duo is the ability to operate 14 channels, while retaining a conventional installation in your aircraft. Each port is assignable with a main and sub-ID, allowing for servos to be plugged into the unit in the manner most convenient for you.

Have a complex wing panel that you would like to simplify? The XBus output allows for placement of additional hubs and PWM converters in other areas of the airplane, while still retaining full utilization of the 14 output channels on the main unit.

What’s more, the XPort Duo operates with dual receiver inputs for the most reliable RF and dual battery inputs for the most revolutionary radio component ever seen in R/C.

Features

JR – JRPX03689 – XBus XPort Duo Redundant PWM Converter

Dual receiver inputs for the ultimate in RF connection reliability

Dual HD battery inputs with Dean’s Ultra connectors can comfortably supply current for even the most demanding applications and setups

14 assignable PWM ports on the face of the unit allow for a more compact and traditional setup

Fully expandable with other XBus components. Two XPort Duos can be linked together yielding 28 channels to support the 28X transmitter

Dual XBus signal outputs as well as HD power output allow the XPort Duo to be used in conjunction with other hubs and PWM conversion harnesses for maximum performance, and greater simplicity

Strong mounting tabs with rubber grommets allow for secure mounting in your model with total vibration isolation

Product Description

Dual Redundancy System

The XPort Duo provides connection for dual XBus Receivers as well as dual battery packs for the ultimate in redundancy and simplicity.

Specifications

Dimensions: 19 x 44 x 71mm
Weight: 57g
Operating voltage: 4.5-8.5V
E-Switch (Non-Contact Switch)
Ready assigned: 1-14ch (Assignable)
XBus Link Cable

Unlimited Extendability

The Xport Duo offers 14 assignable PWM ports and 2 standard XBus outputs. By adding optional XBus servo adapters, Hubs or another Xport Duo, the Xport Duo servo connections can be selected as needed to suit any installation requirements.

Assignable 14 Ports

Integrated 14 PWM ports are capable to assign freely the main channels and also the sub IDs.

All the setup can be carried out wirelessly from the DMSS Transmitters (SD update required).

XPort-duo-setup-tx-screen XPort-duo-outputs

Conversion Compatibility: XG14/XG14E/XG11MV/XG11/XG8

Weight	0.2 kg
