Kingtech K-80G2

KingTech G series, a true Fuel Start turbine, will start and run on Diesel, Kerosene and JetA. G series have both solenoid valves built into the front cover, with a single fuel feed that eliminates at least 8 fuel connections upstream to the turbine, making a clean engine install a very simple task.

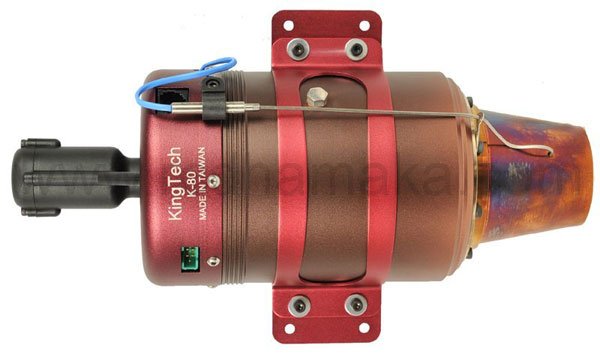

KingTech K-80G turbine engine, made in Taiwan

Specifications:

Diameter: 95.25mm ( 3-3/4″ )
Length: 254mm ( 10″ )
Weight: 1304g ( 2 lb. 14oz. )
Maximum RPM: up to 145000
Thrust: 8618 g @ 21.1° C. ( 19 lb. @ 70° F. )
EGT: 650° C max
Fuel consumption: 239 g / min ( 8.46 oz / min )
Fuel: Diesel, Jet A1, Kerosene
Lubrication: 5%
Maintenance cycle: 25 hr

K80G2 set includes KingTech ECU, GSU, ECU cable, KP500V pump, cable set, fuel filter, 4mm connection assortment pack and 4mm shout-off valve
