Matek Digital Airspeed ASPD AS-DLVR-I2C

All sensors DLVR series is the best airspeed sensor ArduPilot currently support.
Specifications
Sensor: All sensors DLVR-L10D, Industrial temperature range
DLVR-L10D Sensor datasheet, pls visit www.allsensors.com
Interface: I2C (SCL & SDA)
Sensor I2C address: 0x28
Pressure Ranges: 2500Pa
Maximum Pressure: 75kPa
Operating Temperature: -25°C ~ 85°C
Board Supply voltage: 4~5.5V DC
Working current: 5mA
Red LED: 3.3V power indicator
JST-GH sequence: 5V, SCL, SDA, GND
Weight: 3.5g (sensor board)

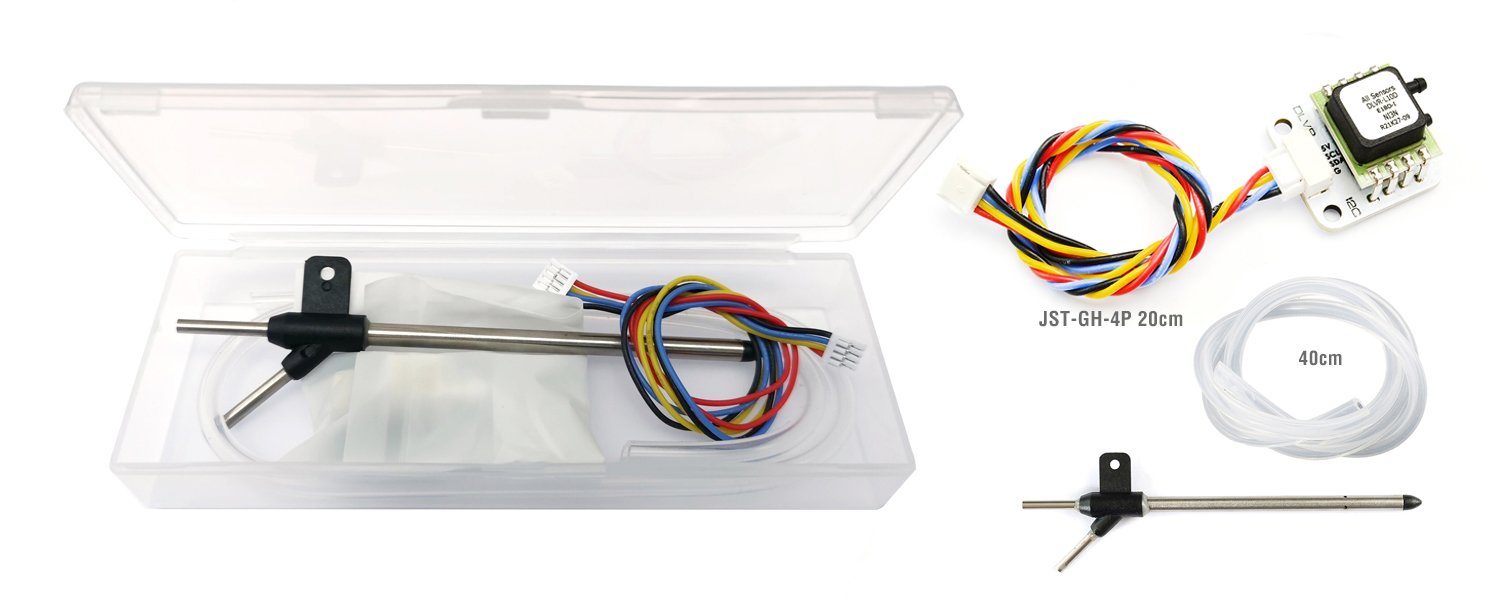

Including
1x AS-DLVR-I2C Sensor Board.
1x JST-GH-4P to JST-GH-4P 20cm silicon wire
Pitot Tube.
Clear silicon tubing 40cm
Wiring
5V to FC 4~5.5V
SCL to FC I2C_SCL
SDA to FC I2C_SDA
G to FC GND
Parameters
ArduPilot: ARSPD_TYPE = 9 (I2C-DLVR-10in)
Tips
Compatible with ArduPilot only for now, INAV doesn’t support it.
AS-DLVR-I2C support I2C interface only. for CAN connection, pls visit ASPD-DLVR page
