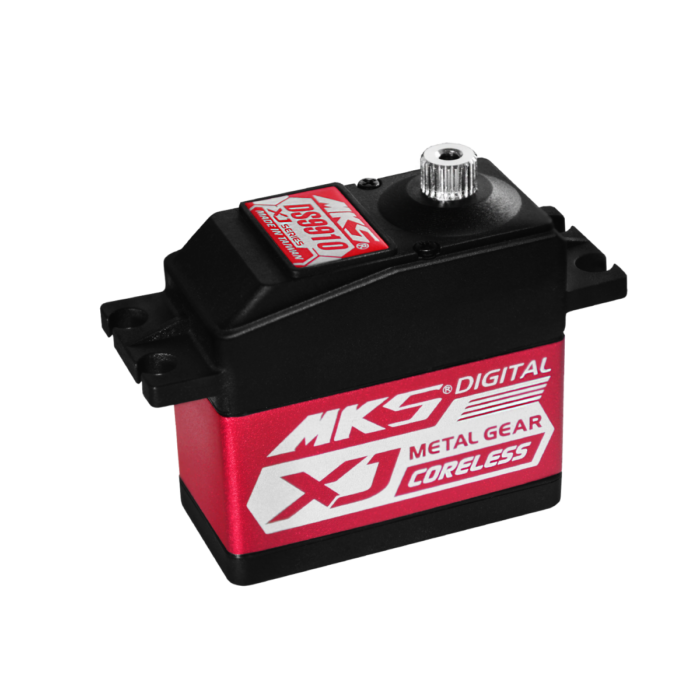

MKS DS9910 Servo

– Ideal For F3A Model, Turbine Jet Model

– Three Coppers Bushings / Strong, Accurate

– Waterproof Bearing / Dustproof, Waterproof

– Metal Alloy Gear / Wear-resistant, Smooth

– Middle Aluminium Alloy Case / High Heat Dissipation

– Japan High Quality Coreless Motor / Competition Level, High performance, High response, equal level as DS670. Providing high torque, incredible efficiency, and low power consumption.

– 0.0007ms High Resolution.

Specfication:
Torque (kg-cm) 21 (4.8V) / 26 (6.0V)
Torque (oz-in) 291.6 (4.8V) / 361.1 (6.0V)
Speed 0.198 s (4.8V) / 0.159 s (6.0V)
Stall Current (at locked load) 4.1A (6.0V) / 4.6A (6.8V)
Working Voltage 3.8 ~ 6.8 V DC Volts
Working Frequency 1520μs / 333Hz
Dead Band 0.0007ms (Default)
Bearing 2* Ball Bearing
Gear Metal Alloy Gear
Motor Japan High Quality Coreless Motor
