Product on sale
Brand: MKS

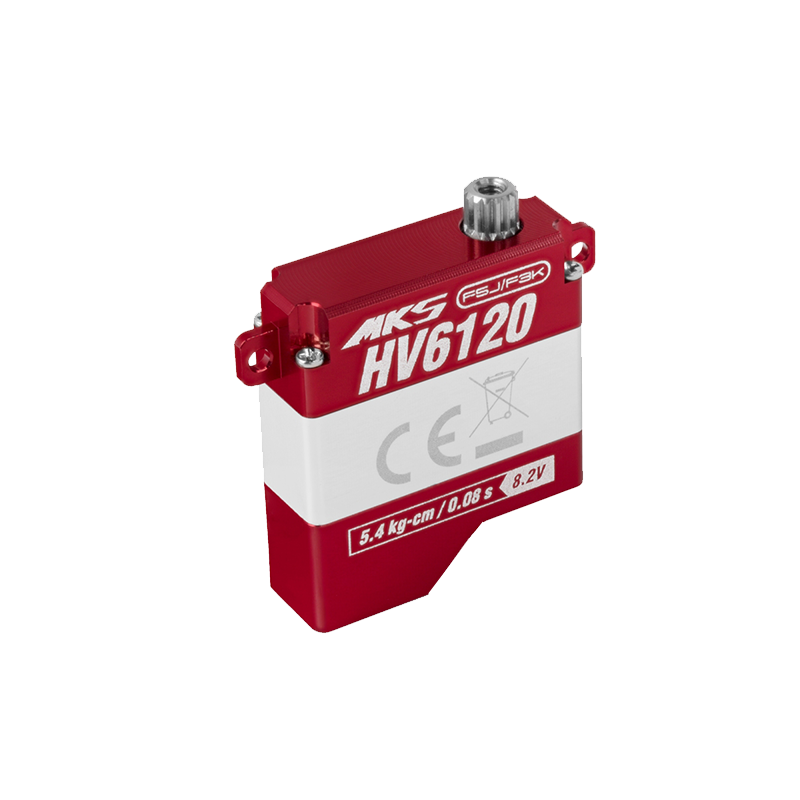

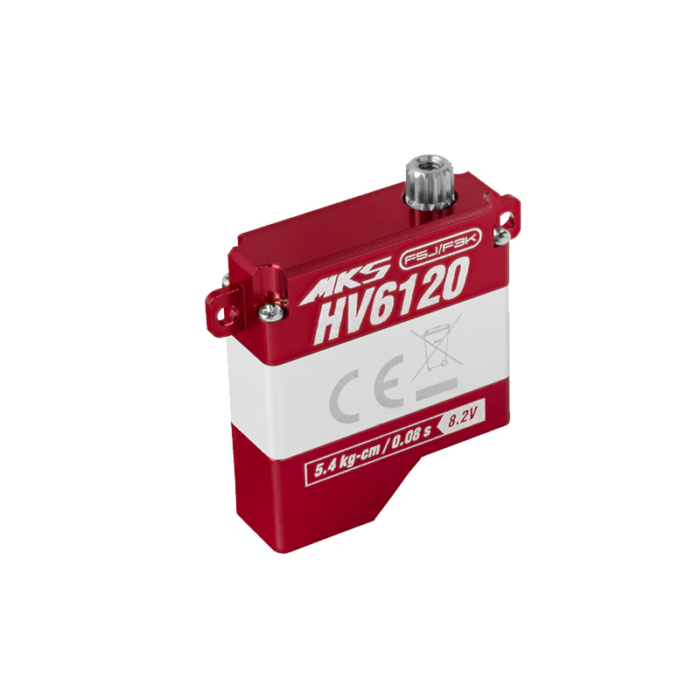

MKS HV6120 Servo

₹6,398.31 excl. GST₹7,550.00 Incl. GST
15 products sold in last 10 hours
Selling fast! Over 12 people have in their cart
In stock
27 people are viewing this right now

    The MKS HV6120 is part of the latest range from MKS. Once you’ve tried MKS, you will know you have tried the very best. Never has a servo been so accurate and tight, a servo we’ve all have been needing for our high performance gliders.

    Servo Specification:

    Torque (kg-cm):  2.54 (3.7V) / 3.3 (4.8V) / 4.1 (6.0V) / 5.0 (7.4V) / 5.4 (8.2V)
    Torque (oz-in):  35.2 (3.7V) / 45.8 (4.8V) / 56.9 (6.0V) / 69.4 (7.4V) / 74.9 (8.2V)
    Speed:  0.18s (3.7V) / 0.139s (4.8V) / 0.11s (6.0V) / 0.089s (7.4V) / 0.08s (8.2V)
    Stall Current (at locked load):  1.1A (3.7V) / 1.37A (6.0V) / 1.69A (7.4V) / 1.87A (8.2V)
    Working Voltage:  3.5V – 8.4V DC Volts
    Working Frequency:  1520μs / 333Hz
    Dead Band:  0.001 ms (Default)
    Bearing:  2* Ball bearing
    Gear:  Metal Alloy Gear
    Motor:  Coreless Motor
    Weight:  11 g  /  0.388 oz

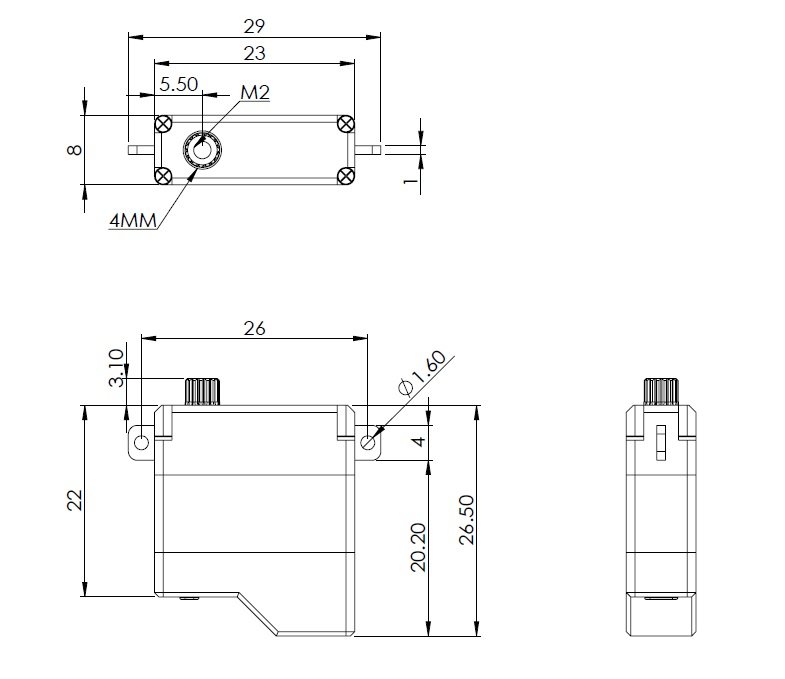

    Dimension:  23 x 8 x 25.2 mm
