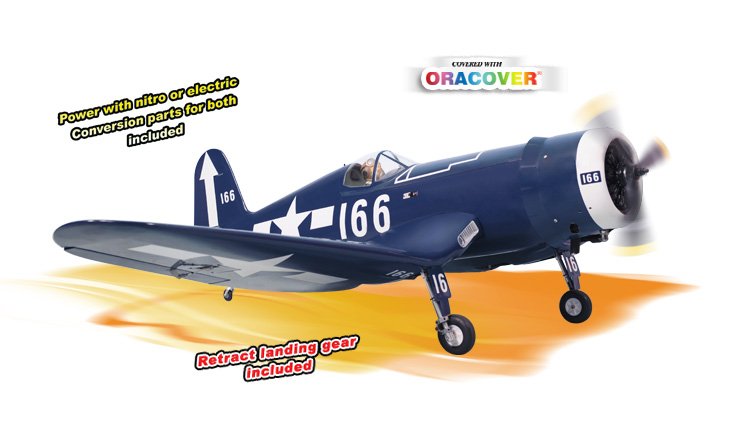

Phoenix Model F4U Corsair 1.20/20cc GP/EP/Gas ARF 70.9″ – 1:7

Gull wing gunner
Quick, maneuverable, and heavily armed, F4U Corsairs were a force to be reckoned with. America unleashed Marine Corps pilots on the Corsair and the Marines unleased it on the Japanese. Its gull wing design makes it one of the most instantly recognizable aircraft of WWII and its combat record makes it one of the most impressive. This model version fits 20-22cc gas engines for exceptional power. Precise laser-cut parts and top quality craftsmanship deliver enough scale detail to make any historian happy while delivering the performance hobbyists demand.

This is the Radio Controlled, Gasoline, Glow or Electric Powered
Almost Ready to Fly 1.20/20cc F4U Corsair Scale Military Airplane
from Phoenix Model.
For Intermediate Pilots

FEATURES
Construction: Laser cut balsa and light plywood
Wing: Bolt-on two-piece with two aluminum joiner tubes to ensure
proper alignment
Covering: High quality self-adhesive
Cowl: Constructed of fiberglass, painted blue and white, with plastic
dummy radial engine detail
Landing Gear: Rotary air 90° retracts with CNC machined metal struts
air tank, 3.75″ (95.2mm) main wheels, 1.3″ (34mm) tailwheel
(Main wheels not available separately. If wheels are needed, order
the DuBro #350TL 3.5″ Treaded Lightweight Wheels, DUBQ0844)
Cockpit: Full depth with instrument panel and painted pilot
Canopy: Clear molded plastic, removable for access to battery and
radio gear
Engine Mount: Two-piece composite plastic
Motor Mount: Plywood
Fuel Tank: Approximately 16oz (473cc)

INCLUDES
ARF F4U Corsair Scale Military Airplane with Motor and Engine Mounts,
Fuel Tank, two Wing Joiner Tubes, Retractable Landing Gear, Main
and Tail Wheels, Painted Pilot Bust, Decal Sheet and Instruction
Manual

REQUIREMENTS
Radio: At least 8-channel
Servos: 9 standard size high-torque 2-aileron; 2-flap; 2-elevator
1-rudder; 1-throttle; 1-air valve
Spinner Nut: 1″ (25mm) diameter
For Electric Power;
Brushless Motor: Outrunner 2300/2500W-450Kv
LiPo Battery: 6-12 cells 40C at least 5500mAh
Electronic Speed Control: Compatible with selected motor
Propeller: Compatible with selected motor
For Glow Power;
Glow Engine: 1.20 cu in 2-stroke, OR 1.40 cu in 4-stroke OR
Gasoline Engine: 20cc
Receiver Battery: 6.0V at least 2400mAh NiMH
Propeller: Compatible with selected engine
Glow fuel or gasoline, glow starter or ignition battery
Field and maintenance equipment

SPECIFICATIONS
Wingspan: 70.9″ (1800mm)
Length: 54″ (1375mm)
Flying Weight: 5200-5600 g
Wing Area: 54.6 dm2
Wing Loading: 95g/dm2
Wing Type: NACA airfoils
Wing Tube Dimensions: 0.75 x 12.9″ (19 x 327mm)
Center of Gravity: 4.5″ (115mm) back from the leading edge of the
wing measured at the fuselage
Control Throws; Low High
Elevator, up/down: 0.47″ (12mm) 0.59″ (15mm)
Aileron, up/down: 0.47″ (12mm) 0.59″ (15mm)
Rudder, left/right: 0.59″ (15mm) 0.98″ (25mm)
Flap: 0.79″ (20mm) down 1.2″ (30mm) down
