Phoenix Model F4U Corsair 50-61CC Gas/EP ARF 85″ – 1:5 1/2

Introducing

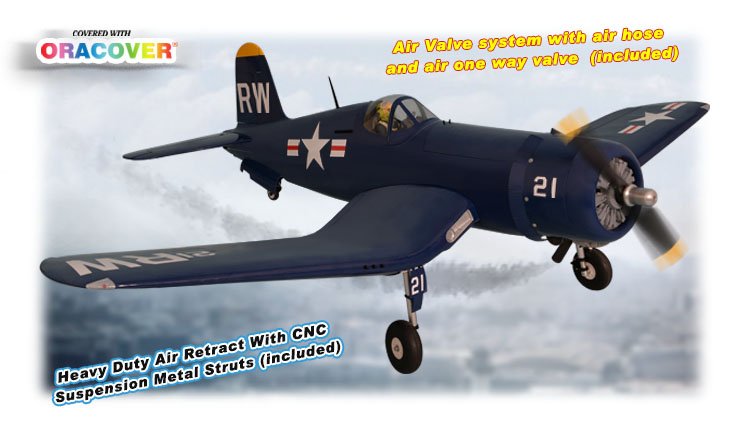

Regarded by many as the most formidable of all WWII American fighters, the F4U Corsair was a versatile, carrier-capable aircraft that provided excellent air and ground support. The Phoenix Corsair F4U 60cc ARF is built with the scale RC pilot in mind who wants a giant-scale model that’s as versatile as it is realistic. One of the greatest convenience features is the two-pieces fuselage, which features plug-in outer panels- Making assembly and transport super convenient. The airfoiled horizontal tail sections are removable as well. It’s also come with a full set rotary 90 degree air retract. Corsair is a registered trademark of Northrop Grumman Systems Corporation and is used under license to Phoenix Model .

Technical data
– Wingspan: 2170mm (85.4in)
– Length: 1658mm (65.2 in)
– Flying weight: 10200-12000 gr
– Wing area: 89 dm2
– Wing loading: 145g/dm2
– Wing type: Naca airfoils
– Covering type: Genuine ORACOVER®
– Retract gear type: Rotary 90 degree Air-retract With CNC Suspension Metal Struts (included)
– Spinner size: scale type (not included)
– Radio: 6 channel minimum (not included)
– Servo: 9 standard hi-torque servo: 2 aileron; 2 flap; 2 elevator; 1 rudder;1 retract valve; 1 throttle (not included)
– Recommended receiver battery: 6.0V 2400/2600mAh NiMH (2) (not included)
– Servo mount: 21mm x 42 mm
– Propeller: suit with your engine
– Engine: 50- 60 CC gas engine (two stroke) (not included)
– Motor: brushless outrunner 6500 W, 230 KV (not included)
– Experience level: Intermediate
– Plane type: Scale Military
RECOMMENDED MOTOR AND BATTERY SET UP
– Motor: Rimfire 50cc (not included)
– Propeller: 22×8 to 26×10 (not included)
– Lipo cell: 33.3-55.5V / 9-15S LiPo (not included)
– Esc: 120 Amp (not included)

Feature
– Official licensed product
– Superb flying characteristics, plus an accurate scale outline
– Functional three-panel flaps deploy using internal linkages
– Two-pieces fuselage – Making assembly and transport super convenient
– Designed for compatibility with both GP and EP flight
– Covered in genuine ORACOVER®
– Separate fuselage and wing structure allows compact transportation
– Extremely lightweight laser-cut all-wood construction
– Rotary 90 degree Air-retract With CNC Suspension Metal Struts included
– Full-depth cockpit and instrument panel and pilot included
– Aluminum hub wheel included
– Removable canopy for easy change lipo battery and set up radio
– High-quality hardware package included

Click Here to Download Manual
