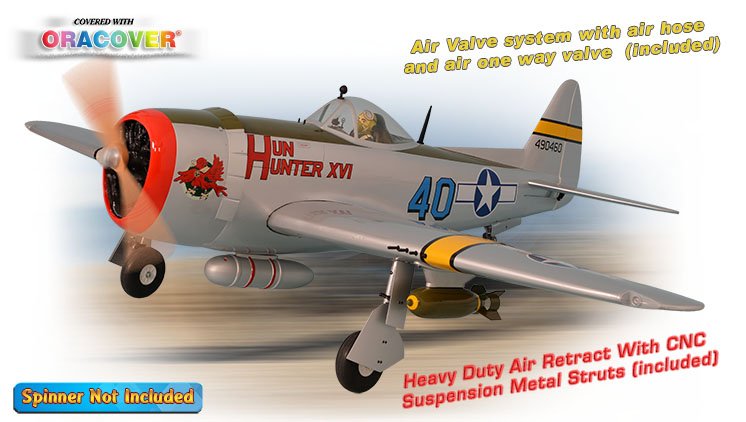

Phoenix Model P-47 Thunderbolt 30-35cc Gas/EP ARF 79″ – 1:6 1/4

Heavy-duty and hard-hitting.
The heavily armed Republic P-47 Thunderbolt was the largest, heaviest, and most expensive fighter aircraft in history to be powered by a single piston engine. Fully loaded, it weighed up to 8 tons! A remarkably accurate recreation, this factory-finished balsa/ply sport-scale version uses slotted flaps to conceal control horns internally. Also included are air retracts, scale cockpit with instrument panel and pilot, scale plastic guns and antenna — and much more. Fly with your preference of glow, gasoline, or brushless electric power.

FEATURES
Experience Level: Intermediate
Plane Type: Scale military
Construction: Balsa and light plywood
Wing: Bolt-on two-piece
Flaps: Slotted to provide function and scale appearance concealing
the control horns internally to maintain scale lines
Covering: High quality self-adhesive
Landing Gear: Heavy duty air retract with CNC machined metal
suspension struts, air valve system, air hose, one-way valve
Cowl: Factory painted
Canopy: Removable for access to battery and radio equipment
Cockpit: Detailed with instrument panel, painted pilot bust
Top Hatch: Removable for easy battery changes and access to radio
gear
Motor Mount: Plywood
Engine Mount:
Fuel Tank: Approximately –oz (–cc)

INCLUDES
Prebuilt and covered Fuselage, Wing and Tail sections, Landing Gear,
scale Hardware Package, Instruction Manual, Instrument Panel,
Pilot, scale Lens, Mirror, Gun and Removable Antenna

REQUIREMENTS
Radio: 8-channel minimum
Servos: 9 standard size (2 aileron; 2 flap; 2 elevator; 1 rudder;
1-air valve, 1-throttle (if using gas engine)
Receiver Battery: 6.0V 2400-2600mAh NiMH
Spinner: Scale type P47 Thunderbolt
Building and field equipment
For Electric Power;
Brushless Motor: Outrunner type, Great Planes ElectriFly RimFire 1.60
recommended
Electronic Speed Control:
LiPo Battery: 12S 5000 – 6000mAh
Propeller: 16×8 – 18x8E
For Glow or Gasoline Power;
Engine: 30-35cc gasoline
Propeller: To match selected engine

SPECIFICATIONS
Wingspan: 79.1″ (2011mm)
Length: 68.4″ (1737mm)
Flying Weight: (8000 – 8200g)
Wing Area: 1083 sq in (70 sq dm)
Wing Loading: 36oz sq in (110g/sq dm)
Wind Type: NACA airfoils
Pressure for Air Tank Retract: 7 bar (100 psi)
Servo Mount:
Center of Gravity, CG: 5.3″ (135mm) back from leading edge of wing at
fuselage side
Control Throws- Low High
Ailerons 0.51″ (13mm) 0.59″ (15mm)
Elevator 0.47″ (12mm) 0.55″ (14mm)
Rudder 0.79″ (20mm) 0.98″ (25mm)
Flaps mid 0.63″ (16mm) down landing 0.98″ (25mm) down
