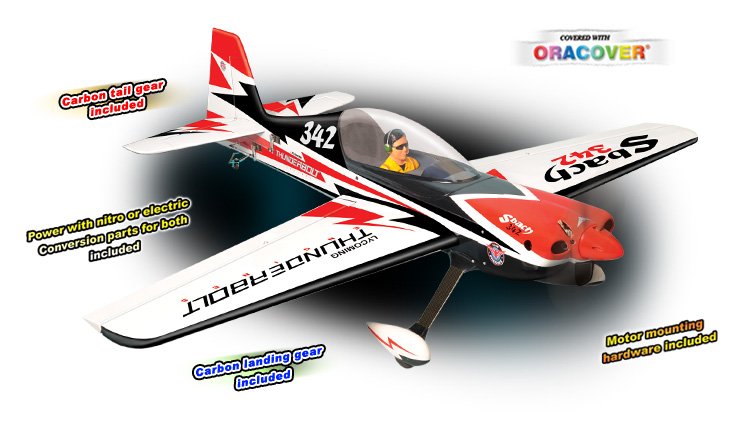

Phoenix Model SBACH 342 1.20/22cc

Get back in the air with the Sbach
Based on the XtremeAir Sbach 342, the Phoenix Model version of this performance plane lives up to the original with maneuverability and control that is every bit as thrilling as the original! This model is a 3D masterpiece built from balsa and plywood and ready for your favorite nitro engine and radio system.

This is the Radio Controlled, 1.20 Glow or Electric Powered 1/4 scale
Almost Ready to Fly Sbach 342 Scale Aerobatic Monoplane from Phoenix Model.
Recommended for intermediate level aerobatic fliers.

FEATURES
Construction: Laser cut balsa and ply
Covering: High-quality film covering
Wing: Two-piece
Aileron Control: Dual servo
Cowl: Factory painted fiberglass
Canopy: Clear, with painted pilot bust
Landing Gear: Prebent aluminum main gear, spring wire for tail gear
Spinner: Red plastic 2-3/4″ (70mm)
I
NCLUDES
ARF Sbach 342 Aerobatic Airplane with Wheels, Spinner, Cowl, Pilot
Bust, Fuel Tank, Canopy and Instruction Manual

REQUIREMENTS
Radio: 4-channel minimum
Servos: Six standard, 2-aileron, 2-elevator, 1-rudder, 1-throttle
(if using glow engine)
Receiver Battery: 4.8 – 6.0V (1200-2000mAh)

For Glow Power;
Engine: 1.20 cu in (19.6cc) 2-stroke OR 1.20 cu in (19.6cc) 4-stroke
Glow Fuel, Glow Starter, Prop, Building and Field Equipment

For Electric Power;
Brushless Outrunner Motor: .120 Rimfire
ESC: 80-100A to match selected motor
LiPo Battery: 6-12S at least 4000-5500mAh
Battery Charger: To match selected battery
Prop, Building and Field Equipment

SPECIFICATIONS
Wingspan: 65.5″ (1663mm)
Length: 64.5″ (1638mm)
Flying Weight: 10.36 – 11.4 lbs (4700 – 5200 g)
Airfoil: Naca
Wing Area: 868 sq in (56 sq dm)
Wing Loading: 27.85 oz/sq ft (85 g/sq dm)
Center of Gravity (CG): 4.5″ (115mm) back from leading edge of wing
at fuselage sides
Control Throws- Low Rate High Rate
Elevator: Up & Down 0.47″ (12mm) 12% expo 0.59″(15mm) 12% expo
Rudder: Right to Left 1.18″ (30mm) 15% expo 1.8″ (45mm) 15% expo
Ailerons: Up & Down 0.47″ (12mm) 10% expo 0.59″(15mm) 10% expo
