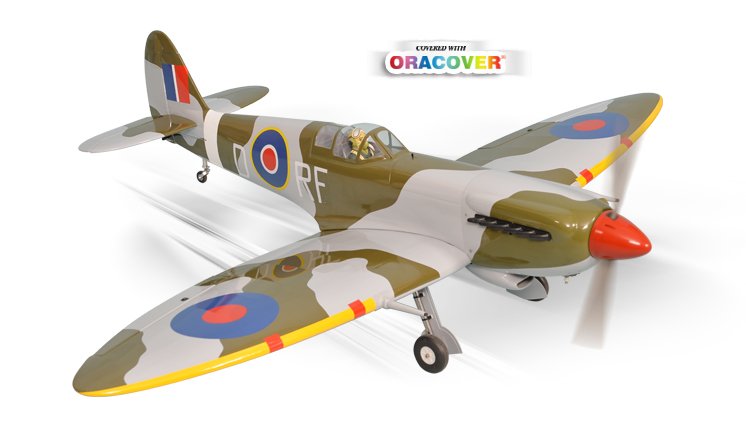

Phoenix Model Spitfire 30cc Gas/EP ARF 70.8″ – 1:6 1/4

Agile and aggressive!
The Spitfire was the victor of the Battle of Britain, the savior of England, and an impressively agile aircraft on top of it all. The Phoenix Models scale representation of this historic aircraft is designed to be scale in looks and performance! Drop in a power system that suits you and fire up your favorite radio for intense aerobatics on demand!

This is the Phoenix Model Radio Controlled 20-30cc Glow or Electric Powered
1/6 scale Almost Ready to Fly Spitfire Airplane.
For Intermediate Pilots.

FEATURES
Construction: Balsa and ply
Wing: One-piece, with ailerons and flaps, 21.5″ (546mm) long,
1.26″ (32.1mm) diameter aluminum joiner tube
Cowl: Painted fiberglass
Covering: High quality heat shrink covering
Landing Gear: Retracts with CNC machined metal struts, spring tail
gear
Wheels: 3.25″ (82.5mm) main, 1.25″ (32mm) tailwheel
Spinner: Red plastic 3.7″ (95mm) diameter
Top Hatch: Removes for easy access to battery and radio equipment
Engine Mount: Two-piece composite
Motor Mount: Plywood
Fuel Tank: Approximately 14oz (420cc)

INCLUDES
Prebuilt Wing, Fuselage and Tail Assemblies, Retracts, Main Wheels
Tailwheel, Spinner, Engine Mount, Motor Mount, Instruction Manual,
Fuel Tank, Decal Sheet

REQUIREMENTS
Gasoline Power:
Engine: 30cc
2-cycle oil, ignition battery

Electric Power:
Brushless Motor: Great Planes Rimfire 1.20 recommended
ESC: 80A if using the Rimfire 1.20 motor listed above
LiPo Battery: 5-6 cells, 5500 – 6000mAh
Charger, charging bag
Propeller: Compatible with selected engine or motor

Radio: 6-channel minimum
Servos: 7 standard size, high-torque, 2-aileron; 2-flap; 1-elevator
1-rudder; 1 throttle (if using gas engine)
Retract Gear Servos: Two, Futaba S3170G recommended
Receiver Battery: 4.8-6V / 2000mAh NiMH
Field and maintenance equipment

SPECIFICATIONS
Wingspan: 70.8″ (1800mm)
Length: 61.9″ (1572mm)
Flying Weight: 12.8-13.7lbs (5.8-6.2g)
Wing Area: 5.7 sq ft (53.4 sq dm)
Wing Loading: 35.4oz/sq ft (108g/sq dm)
Wing Type: NACA airfoils
Servo Mount: 0.83 x 1.6″ (21mm x 42mm)
Center of Gravity (CG): 4.7″ (120mm) back from leading edge of wing
measured at the fuselage
Control Throws: Low Rate High Rate
Ailerons, up/down: 0.43″ (11mm) 12% expo 0.51″ (13mm) 10% expo
Elevator, up/down: 0.43″ (11mm) 12% expo 0.51″ (13mm) 12% expo
Rudder, right/left: 1.2″ (30mm) 15% expo 1.6″ (40mm) 15% expo
Flap, Mid 0.59″ (15mm) down, Landing 0.79″ (20mm) down

Click Here to Download Manual
