Phoenix Model Spitfire 50-61cc Gas/EP ARF 95″ – 1:4 3/4

The most spectacular Spitfire yet!

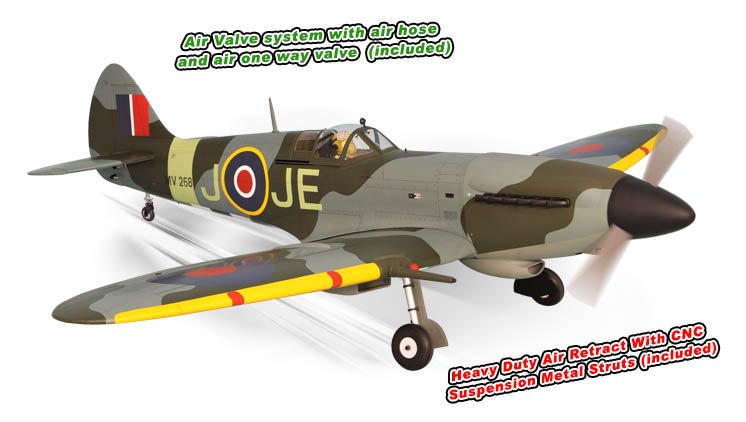

The 95″ span Phoenix Model Spitfire EP/Gas ARF recreates every dynamic detail of Britain’s beloved warbird! Features include a scale cockpit and pilot figure, heavy-duty air retracts, a two-piece wing, functional panel flaps, operational cockpit side doors and more.

This is the Radio Controlled, Gasoline or Electric Powered, Almost Ready to Fly
50-61cc 1:4 3/4 Spitfire Scale Warbird from Phoenix Model.
For Intermediate Flyers.

FEATURES
Construction: Balsa and ply
Wing: Two-piece, functional flaps
Landing Gear: Air-retract with CNC machined metal suspension struts,
air valve system with quick-connect air hose
Wheels: Main, 4.5″ (115mm) diameter, tail, 1.8″ (47mm) diameter
Covering: Scale details printed on high quality iron on covering
Cowl: Fiberglass
Wheel Pants: Fiberglass
Spinner: Plastic, 6″ (150mm) diameter, scale type
Motor Mount: Plywood
Engine Mount: Plywood with aluminum standoffs
Cockpit: Detailed with instrument panel, painted pilot bust
Canopy: Two-piece, front section slides rearward
Fuel Tank: Approximately 24oz (750cc)

INCLUDES
Prebuilt and covered Wing, Tail and Fuselage sections, Landing Gear,
Fuel Tank, Pilot Bust, Spinner and Instruction Manual

REQUIREMENTS
Radio: At least 8-channel
Servos: 9 standard size, high torque (2-elevator, 2-flap, 1-rudder,
2-aileron, 1-throttle, 1-air valve control)
Receiver Batteries: Two 6.0V NiMH, at least 2400mAh
Building and field equipment

Electric Power:
Brushless Motor: Great Planes Rimfire 50cc recommended
ESC: High-voltage, such as the Castle Creations HV Series
Propeller: 22×8″ – 26×10″
LiPo Battery: Two 6S
Battery Charger & Charging Bag: Compatible with selected 6S LiPo
batteries

Gasoline Power:
Engine: .50-.61cc 2-stroke gasoline
Propeller: To match selected engine

SPECIFICATIONS
Wingspan: 95″ (2410mm)
Length: 86″ (2177mm)
Flying Weight: 24.2 – 26.4lbs (11,000 – 12,000g
Wing Area: 1486 sq in (96 sq dm)
Wing Loading: 37.7oz/sq/ft (115g/sq dm)
Wing Type: NACA airfoils
Servo Mount: 0.83 x 1.6″ (21 x 42mm)
Small Wing Joiner Diameter: 0.75″ (19mm)
Small Wing Joiner Length: 25.2″ (540mm)
Large Wing Joiner Diameter: 1.2″ (32mm)
Large Wing Joiner Length: 26.4″ (670mm)
Center of Gravity (CG): 6.3″ (160mm) back from leading edge of wing
measured at the fuselage
Control Throws: Low Rate High Rate
Ailerons, up/down: 0.47″ (12mm) 10% expo 0.59″ (15mm) 12% expo
Elevators, up/down: 0.47″ (12mm) 12% expo 0.55″ (15mm) 12% expo
Rudder, right/left: 1.2″ (30mm) 15% expo 1.8″ (45mm) 15% expo
Landing Gear, down: 0.59″ (15mm) 0.98″ (25mm) down

Click Here to Download Manual
