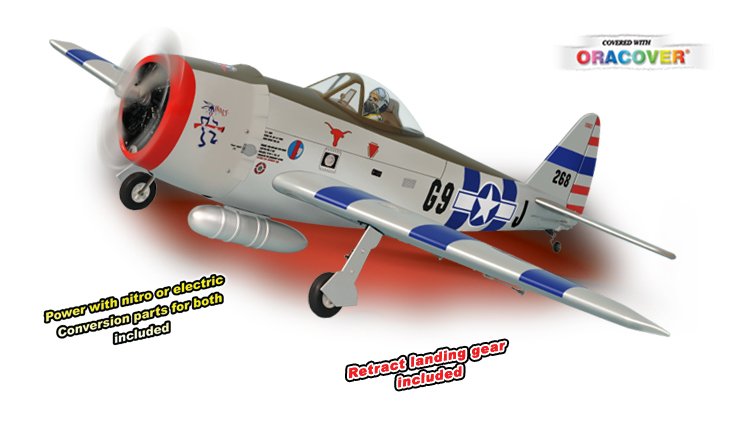

Phoenix P47 Thunderbolt .61~.91 / 15cc

The P-47 Thunderbolt was perhaps the greatest warbird of World War II in terms of all round performance and capability. Top Phoenix Model has recreated this outstanding Airplane to suit size .60-.91 glow plug engines or 15cc Petrol engines. It was designed with the latest laser cut technology and every detail of the airplane has been carefully re-created. The Thunderbolt is built using high quality wood construction and has retracts included. Covered with ORACOVER and supplied with a factory pained cowl, the P-47 is 95% ready to fly. Most hardware is included.

– Wingspan: 1630mm (64.1in)

– Length: 1375mm (54.1 in)

– Flying weight: 3700 – 4500g

– Wing area: 43.8 dm2

– Wing loading: 85g/dm2

– Wing type: Naca airfoils

– Covering type: Genuine ORACOVER®

– Retract gear type: Air-retract With CNC Suspension Metal Struts (included)

– Spinner size: P47 Thunderbolt type  (not included)

– Radio: 6 channel minimum (not included)

– Servo: 8 standard servo: 2 aileron; 2 flap; 1 elevator; 1 rudder; 1 retract; 1 throttle (not included)

– Recommended receiver battery: 6.4V 2200mAh Life (not included)

– Servo mount: 21mm x 42 mm

– Propeller: suit with your engine

– Engine: .61-.91 / 2-stroke glow or 15cc petrol (not included)

– Motor: brushless outrunner 1800-2000 W, 500 KV (not included)

– Gravity CG: 100 mm (7 in) Back from  the leading edge of the wing, at the fuselage

– Control throw Ailerons: Low: 10mm up/down, 10% expo; High: 12mm up/down, 10% expo

– Control throw Elevators: Low: 10mm up/down, 12% expo; High: 12mm up/down, 12% expo

– Control throw Rudder: Low: 20mm right/left, 15% expo; High: 35mm right/left, 15% expo

– Control throw Flaps: Mid: 15mm down; Landing: 25mm down

– Experience level: Intermediate

– Plane type: Scale Military

RECOMMENDED MOTOR AND BATTERY SET UP

– Motor: .80 Size (not included)

– Propeller: 15×6- 15×8 E APC (not included)

– Lipo cell: 6 cells / 5000 – 6000mAh (not included)

– Esc: 80-100 A (not included)

– Designed for compatibility with both GP and EP flight

– Covered in genuine ORACOVER®

– Top quality balsa/light plywood construction

– Air-retract With CNC Suspension Metal Struts included

– Full-depth cockpit and instrument panel and pilot included

– Scale plastic bomb included

– Bolt-on two-piece wing for easy transport and setup at the field

– Removable canopy for easy change lipo battery and set up radio

– Strong Light Weight Construction

– Superb flying characteristics, plus an accurate scale outline

– High-quality hardware package included
