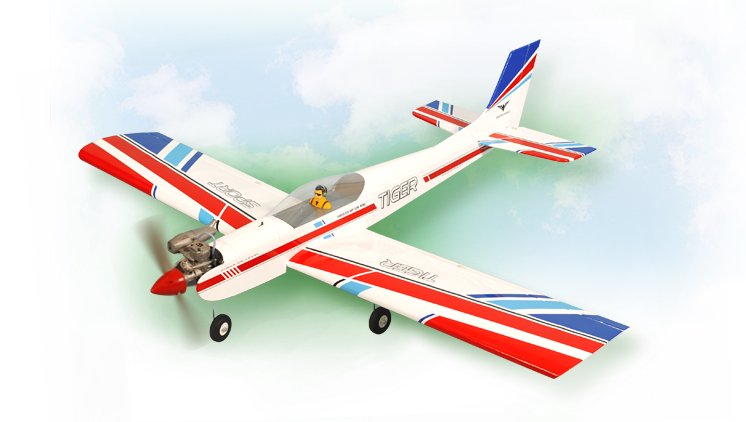

Phoenix Tiger 3 .46~.55

Stalk the skies with the Tiger 3!
Easy ARF construction, the option to fly Glow or Electric, a solid 59 inch wingspan and low-wing sport performance; the Tiger 3 has it all! This balsa and ply marvel comes mostly built, pre-covered and ready to wow as soon as you bolt on the wings and drop in your radio gear and power system of choice.

This is the Radio Controlled, Glow or Electric Powered,
Almost Ready to Fly Tiger 3 Low Wing Sport Airplane from Phoenix Models.
For Intermediate Flyers.

FEATURES
Construction: All balsa and plywood
Wing: Bolt-on two-piece with aluminum joiner tube
Covering: High quality heat shrink covering, color scheme is white
and red with dark and light blue accents
Canopy: Clear, painted pilot bust
Engine Mount: Two-piece composite plastic
Motor Mount: Plywood
Spinner: Red plastic 2.3″ (58mm)
Landing Gear: Main-prebent wire, nose gear-steerable prebent wire
with three 2.5″ (63.5mm) treaded wheels
Fuel Tank: Approximately 12oz (354cc)

INCLUDES
ARF Tiger 3 Aerobatic Airplane with Fuel Tank, Motor Mount, Engine
Mount, Landing Gear, Spinner, Pilot Bust and Instructions

REQUIREMENTS
Radio: 4-channel with five servos
Glow Power;
Engine: .46-.55 cu in (7.5-9.0cc) 2-stroke
.52-.61 cu in (8.5cc) 4-stroke
Receiver Battery: 4.8-6V / 800-1200mAh NiMH
Glow fuel, prop, glow starter
Electric Power;
Brushless Motor: 1000-1400 W, at least 480 KV
ESC: 50-70A brushless compatible
Battery: 4000-5000mAh LiPo battery
Battery Charger: Compatible with selected battery
Prop to match selected motor
Building and field equipment

SPECIFICATIONS
Wingspan: 63″ (1600 mm)
Length: 53.5″ (1360mm)
Flying Weight: 5.5 – 5.9lbs (2500 – 2700g)
Wing Area: 662 sq/in (42.8 sq/dm)
Wing Loading: 19.66oz/sq ft (60g sq/dm)
Airfoil: NACA
Center of Gravity: 2.9 – 3.3″ (75 – 85mm) back from the leading edge
of the wing at the fuselage
Control Throws
Ailerons: Low: 8mm up/down, 10% expo
High: 10mm up/down, 10% expo
Elevators: Low: 8mm up/down, 12% expo
High: 10mm up/down, 12% expo
Rudder: Low: 25mm right/left, 12% expo
High: 40mm right/left, 15% expo
