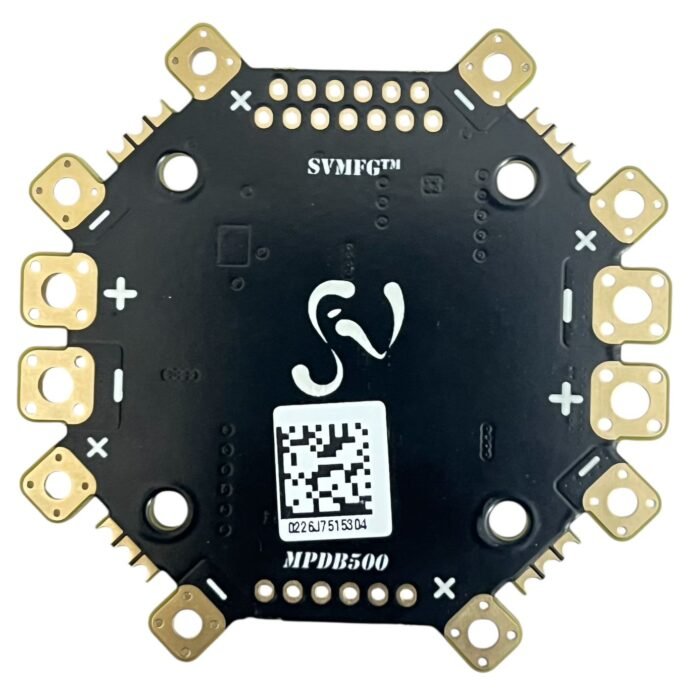

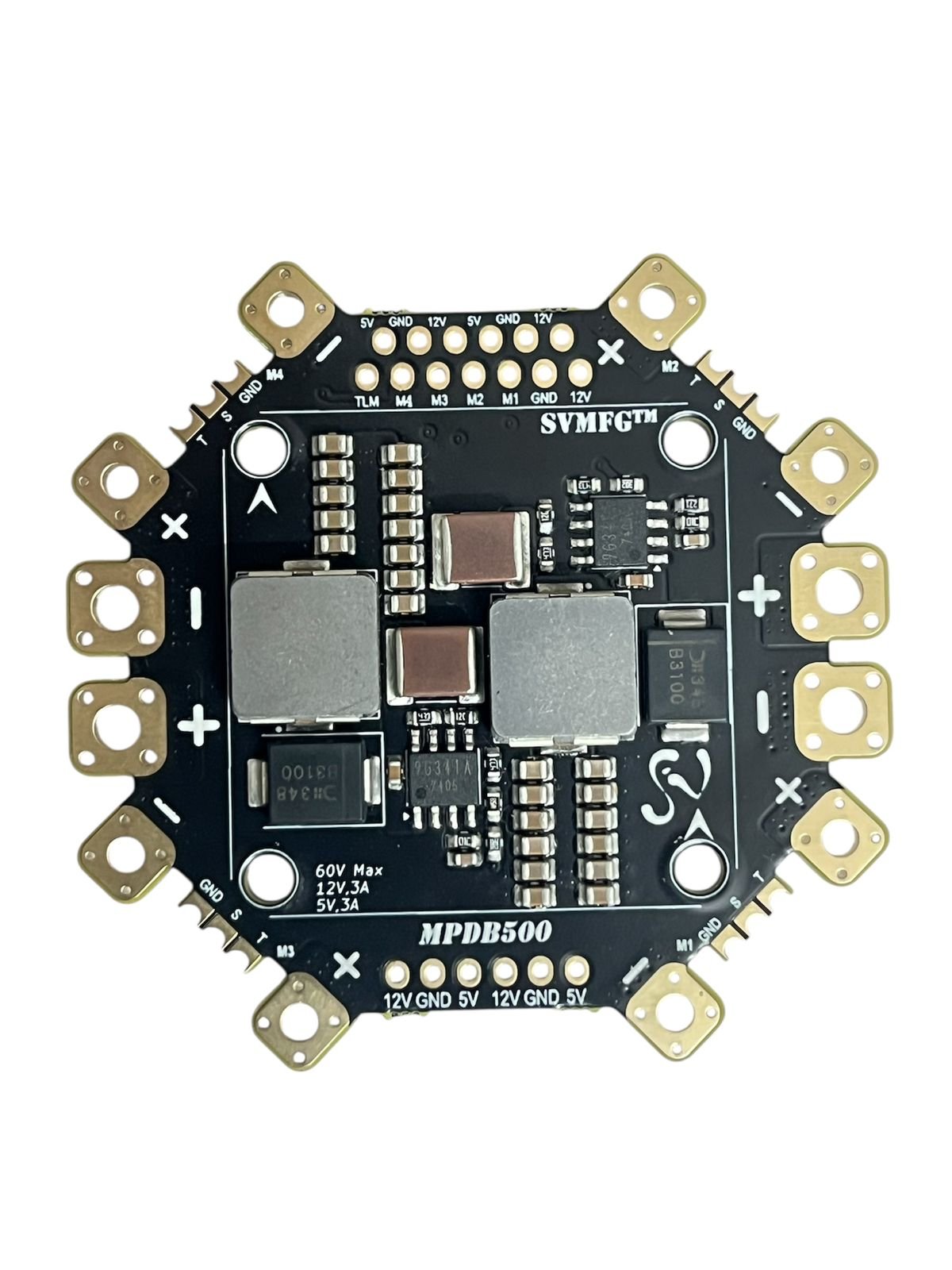

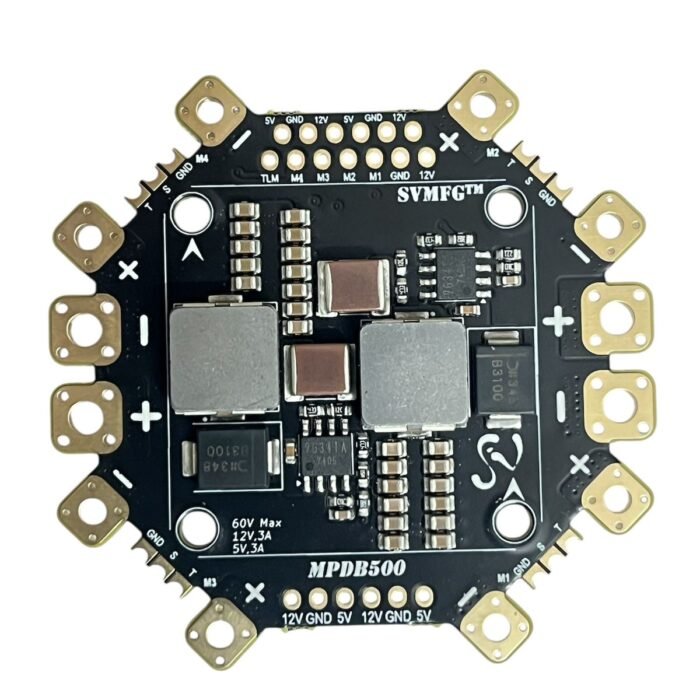

SVMFG MPDB 500A PDB 14S 60V Made in India

The SVMFG MPDB 500A is a high-performance power distribution board engineered for heavy-lift and industrial UAV applications. Featuring an 8-layer heavy copper architecture, it is designed to sustain massive current demands while maintaining superior thermal efficiency.

Core Specifications:
Current Handling: Supports up to 125A continuous per ESC leg.
Voltage Input: Maximum input of 14S (60V).
Integrated Regulation:
12V @ 3 Amp regulator.
5V @ 3 Amp regulator.
Materials: Built with ISOLA 185HR high-performance dielectric glass fiber for continuous high-temperature reliability.

Key Features
Signal Integrity: Telemetry and signal lines are strategically sandwiched between negative (GND) layers to provide internal shielding against high-power switching noise.
Flexible Connectivity: Equipped with double-sided main input power pads that allow for soldering or bolting (though soldering is recommended for high-power stability).
Thermal Design: Solder tabs extend beyond the PCB edge to provide thermal relief, making it easier to solder heavy-gauge wires to the board.
Form Factor: Features standard 30.5mm x 30.5mm hole spacing for seamless flight controller mounting.

Specifications

4S-14S input
8 Layers of 4oz copper to each ESC
12V @ 3A switching regulator
5V @ 3A switching regulator
Overcurrent and short circuit protection on both 5V and 12V regulators
Two main power inputs, modular battery
Thermal relief on all solder tabs to allow for easier soldering
2.5mm thickness for strength and reliability
58mm x 58mm in size and mounting holes 30.5mm x 30.5mm
PCB ISOLA 185HR rated for 180°C continuous
Designed and manufactured in India
Weight: 33 grams
Dimensions: 58x58x6mm
