SVMFG PDB DBEC OCTO 1080 MADE IN INDIA

Power Distribution Board Specifications:
-Up to 8 ESC/Motor can be connect to the Board
-260A (Continuous), 320A (Peak)
-2 layout with 2oz(70um) Copper Dual PCB.
-Gold plated with black solder mask
– Dia 64mm body mounting
– 1 PCB plate for(+), 1 PCB plate for(-)
– Size : (Dia)100mm

Power Disc Dual BEC Specifications:
– Dual voltage BEC regulator designed for Multi-copter system
– Input voltage : 14.4V~30V(3~7 LiPo Cells)
– Output voltage : BEC1 : 5.6V, 6.0V, 7.4V, 8.4V Selectable / BEC2 : 12.0V
– Output current : BEC1 : 5A(Continuous) @ 22.2V / BEC2 : 3.5A(Continuous) @ 22.2V
– Size : (Dia)85mm

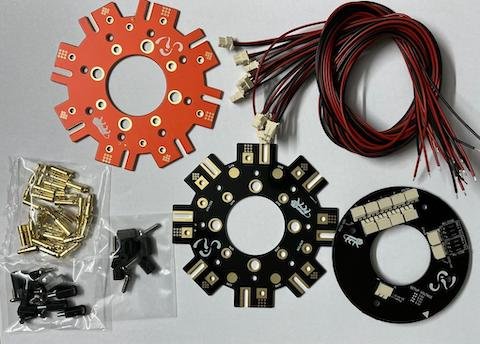

Set Said to contain:
1. PDB ‘+’ PCB – 1 No
2. PDB ‘-‘ PCB – 1 No
3. 3.5mm Gold Connectors – 16 Pairs
4. PCB Post Female-Female M3 x 10mm – 4Nos
5. PCB Post Female to Male M3 x 10mm – 4Nos
6. Socket Button Head Screw M3 x 6mm – 8Nos
7. Disc Dual BEC – 1No
8. PCB Post Female-Female M3 x 6mm – 4Nos
9. PCB Post Female-Female M3 x 10mm – 4Nos
10. Socket Button Head Screw M3 x 10mm – 4Nos
11. Power Output Molex Connector Cable( L=30cm) – 11Nos
PROUDLY MADE IN INDIA
